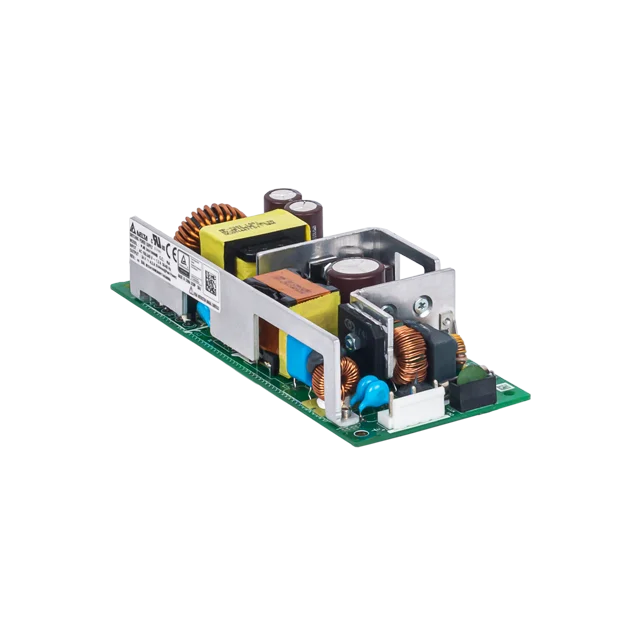

The Delta Electronics PJB-24V100WLNA is an AC/DC converter with a power rating of 100W and a current output of 4.3A. This open frame unit is designed for chassis mounting and operates with a voltage of 3 kV. It features adjustable output, power factor correction (PFC), and universal input capabilities.
The converter has an efficiency of 89% and operates within a temperature range of -10°C to 70°C, with derating. Its applications are suitable for ITE (Commercial) equipment. The unit is approved by CB, CE, cURus, and TUV.
Key specifications include a single output, dimensions of 185.0mm x 72.0mm x 45.0mm, and a RoHS3 compliant status. The Moisture Sensitivity Level (MSL) is 1 Unlimited, and it is REACH Unaffected.
24V at 4.3A.
89%.
-10°C to 70°C with derating.
Chassis Mount.
CB, CE, cURus, TUV.
185.0mm x 72.0mm x 45.0mm (7.28" x 2.83" x 1.77").
Yes, it features adjustable output.
