| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

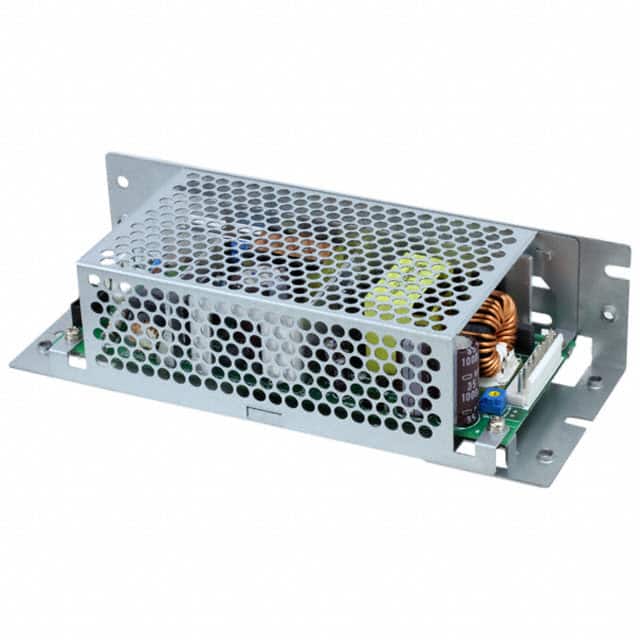

The Delta Electronics PJB-24V100WCNA is an enclosed, conformal coated AC/DC converter designed for ITE (Commercial) applications. It provides a 24V output at 100W and a current of 4.3A, with an efficiency of 89%.
Key features include adjustable output, Power Factor Correction (PFC), and universal input, making it versatile for various power supply needs. The unit operates within a temperature range of -10°C to 70°C with derating.
With dimensions of 185.0mm x 72.0mm x 45.0mm, it is designed for chassis mounting. The converter is approved by CB, CE, cURus, and TUV, ensuring compliance with safety standards.
The output voltage is 24V.
The maximum power output is 100W.
The maximum current rating is 4.3A.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 185.0mm x 72.0mm x 45.0mm.
It uses a chassis mount.
Key features include adjustable output, PFC, and universal input.
