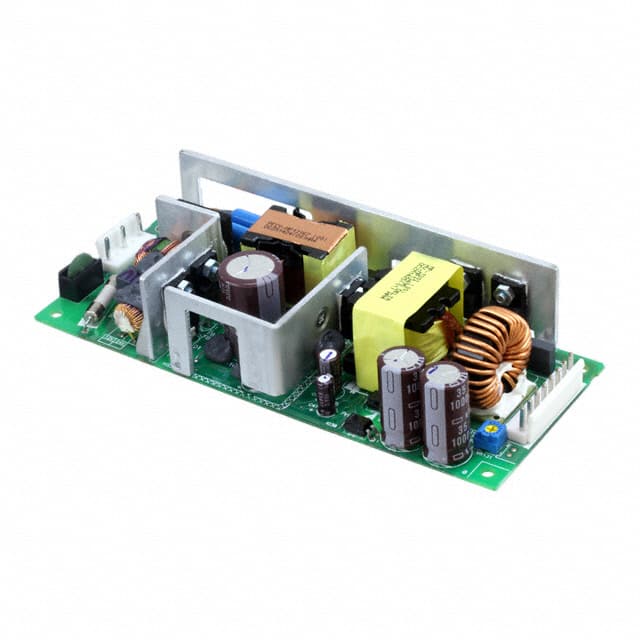

The Delta Electronics PJB-24V100WBNA is an open frame AC DC converter designed for ITE (Commercial) applications. It provides a power output of 100W with a 24V rating and a current of 4.3A.
Key electrical specifications include an efficiency of 89% and universal input capability. The converter features adjustable output and Power Factor Correction (PFC). It offers 3kV isolation voltage and operates within a temperature range of -10°C to 70°C with derating.
This chassis mount converter has dimensions of 185.0mm x 72.0mm x 45.0mm. It is conformal coated for added protection. The PJB-24V100WBNA is approved by CB, CE, cURus, and TUV, ensuring compliance with various industry standards.
It is suitable for applications in building automation, renewable energy, process automation, test and measurement equipment, medical devices, factory automation, LED lighting, and home appliances.
100W.
24V.
4.3A.
89%.
3kV.
Chassis mount.
-10°C to 70°C with derating.
