| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

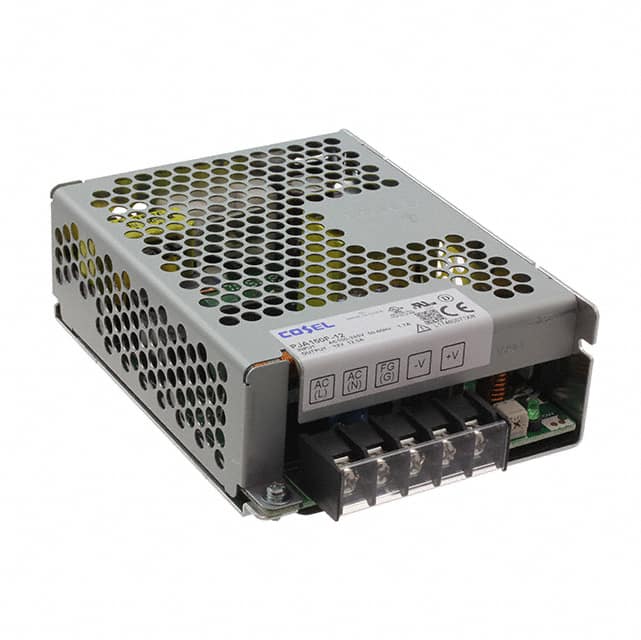

The Cosel PJA150F-12 is an enclosed AC/DC power supply designed for reliable operation in various applications. It delivers 150W of power with a nominal output voltage of 12V.
This converter features a universal input voltage range of AC85 - 264V, making it suitable for global use. It operates efficiently, with typical efficiencies reaching up to 89% at AC230V. The unit is designed for chassis mounting and has dimensions of 129.0mm x 40.9mm x 97.0mm.
Key electrical specifications include an input current of up to 1.2A at AC100V and a power factor of up to 0.98. The operating temperature range is -20°C to 70°C, with derating required at higher temperatures. Safety approvals include UL62368-1, C-UL, EN62368-1, and UL508, ensuring compliance with international standards.
The PJA150F-12 also complies with EMI standards such as FCC-B and CISPR22-B, and EMS standards including EN61000-6-2. It is RoHS3 compliant and offers a 5-year warranty.
The output voltage is 12V.
The maximum output power is 150W.
The input voltage range is AC85 - 264V.
The operating temperature range is -20°C to 70°C, with derating required.
It uses chassis mounting.
Safety approvals include UL62368-1, C-UL (CSA62368-1), EN62368-1, and UL508.
