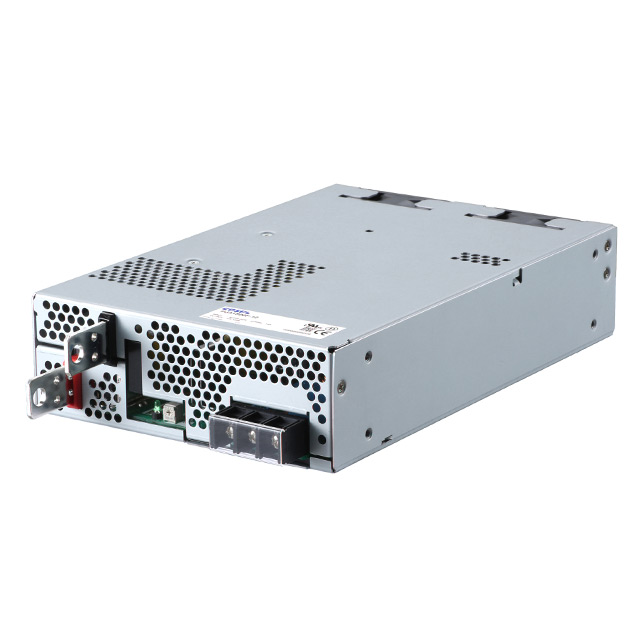

The Cosel PJA1500F-24-V is a high-power AC/DC converter designed for various applications. It operates with a universal input voltage range of AC85 - 264V and provides a stable 24V output.
Key electrical specifications include a maximum output power of 1536W and an output current of 64A. The converter features a typical efficiency of 88% at ACIN 230V and includes Power Factor Correction (PFC), complying with IEC61000-3-2 class A.
Designed for reliability, it operates within a wide temperature range of -20°C to 70°C with derating. Safety approvals include CE, cURus, and DEMKO. The unit is chassis mounted and enclosed for protection.
This AC/DC converter is suitable for ITE (Commercial) applications and meets various EMI and EMS compliance standards.
85-264 VAC single phase. Output derating is required when input is below 115 VAC.
24V output at 64A, providing 1536W power (at 115-264 VAC input).
-20°C to 70°C with derating.
Up to 89% typical at 230 VAC, 100% load. Efficiency varies with input voltage and load.
Enclosed, chassis-mount package.
Yes, it complies with IEC61000-3-2 Class A.
4.242 kV.
