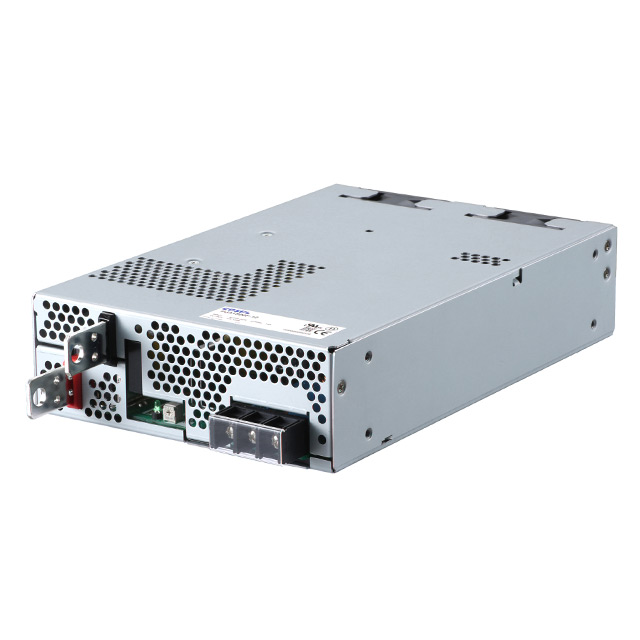

The Cosel PJA1500F-12-C is an enclosed AC DC converter designed for industrial applications. It provides a 1500W output power with a nominal voltage of 12V and a maximum current of 125A. The unit accepts a universal input voltage range of 85-264 VAC with a frequency of 50/60 Hz, featuring power factor correction for improved efficiency.
With an operating temperature range of -20°C to 70°C (with derating), this converter is suitable for various environments. It meets several compliance standards including CE, cURus, and DEMKO, and complies with IEC61000-3-2 class A for harmonic attenuation. The PJA1500F-12-C is built for chassis mounting and has dimensions of 268.0mm x 178.1mm x 61.0mm.
Key electrical specifications include a typical efficiency of 85% at 230V input and 100% load. Line regulation is a maximum of 48mV, and load regulation is a maximum of 100mV. The converter also includes features like SEMI F-47 compliance at 200V input and DEN-AN compliance.
The Cosel PJA1500F-12-C has a nominal output voltage of 12V.
The maximum output current for the PJA1500F-12-C is 125A.
The PJA1500F-12-C accepts a universal input voltage range of 85-264 VAC.
The operating temperature range for the PJA1500F-12-C is -20°C to 70°C, with derating required.
The dimensions of the PJA1500F-12-C are 268.0mm in length, 178.1mm in width, and 61.0mm in height.
The PJA1500F-12-C is RoHS3 Compliant.
