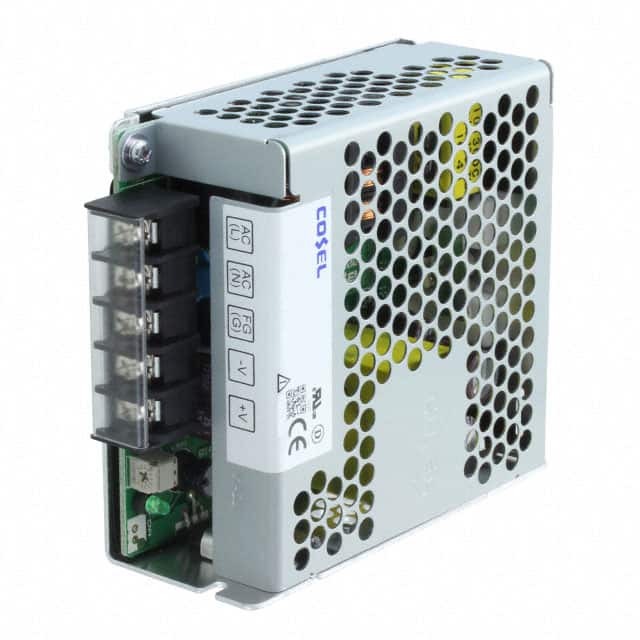

The Cosel PJA100F-36 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a 36V output voltage and a maximum wattage of 100.8W at AC115V-264V input. The unit operates with a universal input voltage range of AC85 - 264V and offers high efficiency, up to 89% at AC230V input.
Key features include a low profile design, a wide operating temperature range from -20°C to 70°C with derating, and compliance with various safety and EMI standards such as UL62368-1, EN55022-B, and FCC-B. The power supply is chassis mountable and has dimensions of 109.0mm x 40.9mm x 97.0mm.
This model also incorporates harmonic attenuation compliant with IEC61000-3-2 class A and meets SEMI F-47 standards under specific conditions. It is suitable for applications requiring reliable power conversion in a compact, enclosed form factor.
The input voltage range is 85-264 VAC.
It provides 36V output at 2.8A, delivering 100.8W.
Typical efficiency is 82% at 100VAC and 115VAC, and 85% at 230VAC.
The operating temperature range is -20°C to 70°C with derating.
Dimensions are 109.0mm (length) x 40.9mm (width) x 97.0mm (height).
It complies with UL508, IEC60950-1, and IEC62368-1.
It meets FCC-B, CISPR22-B, EN55011-B, EN55022-B, and VCCI-B.
