| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

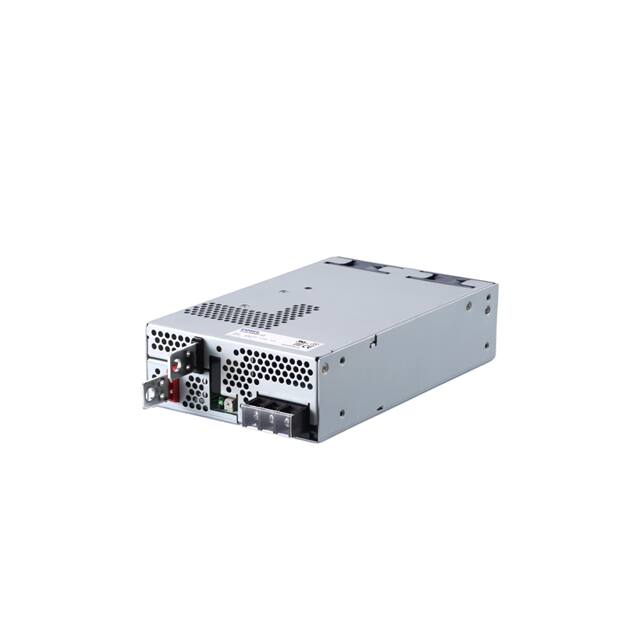

The Cosel PJA1000F-48 is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It delivers 1000W of output power at 48V with a maximum output current of 2.1A.
This converter operates with a universal input voltage range of AC85-264V and features a power factor of up to 0.98 at 100V input. It boasts high efficiency, reaching up to 85% at AC230V input. The operating temperature range is -20°C to 70°C, with derating required at the higher end or lower input voltages.
Designed for reliability, the PJA1000F-48 includes features like harmonic attenuation compliant with IEC61000-3-2 class A and meets SEMI F-47 standards under specific conditions. Safety approvals include UL62368-1, C-UL, EN62368-1, and UL508. The unit is chassis mounted and has dimensions of 240.0mm x 150.1mm x 61.0mm.
The input voltage range is 85-264 VAC.
The output voltage is 48V and the output current is 2.1A (at 115-264 VAC input).
The operating temperature range is -20°C to 70°C with derating.
It has UL62368-1, C-UL (CSA62368-1), EN62368-1, and UL508 safety approvals.
Typical efficiency is 82% at 100V/115V input and 85% at 230V input.
The dimensions are 240.0mm (length) x 150.1mm (width) x 61.0mm (height).
Yes, it complies with IEC61000-3-2 Class A.
