| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

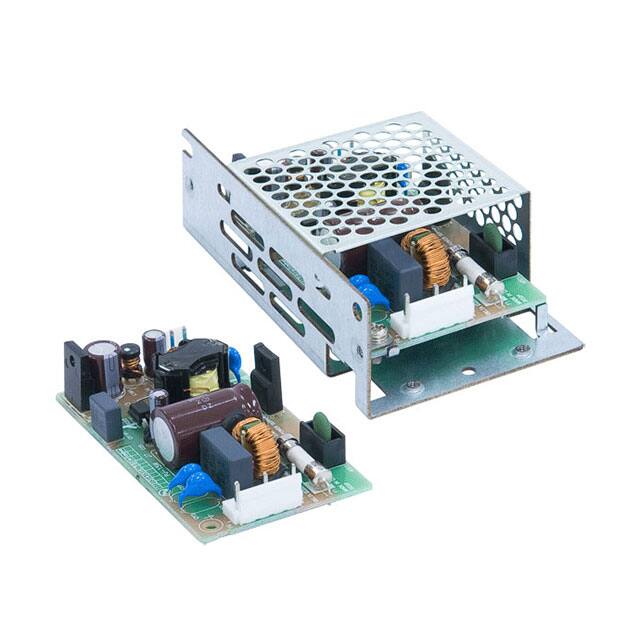

This Delta Electronics PJ-5V15WLNA is an AC/DC converter designed for ITE (Commercial) applications. It provides a 5V output voltage with a maximum current of 3A, delivering a total power of 15W. The converter operates with an input voltage range of 85 to 264 VAC and features an efficiency of 79.5%.
Key features include adjustable output and universal input capabilities. The isolation voltage is rated at 3 kV. The unit is designed with an open frame construction and is intended for chassis mounting. Its dimensions are 107.5mm x 60.0mm x 32.0mm.
The operating temperature range is -10°C to 70°C with derating. Approval agencies include CB, CE, cURus, and TUV. The part status is active.
85-264 VAC.
5 VDC at 3 A maximum.
15W.
79.5%.
-10°C to 70°C with derating.
Open frame, chassis mount, bulk packaging.
CB, CE, cURus, TUV.
