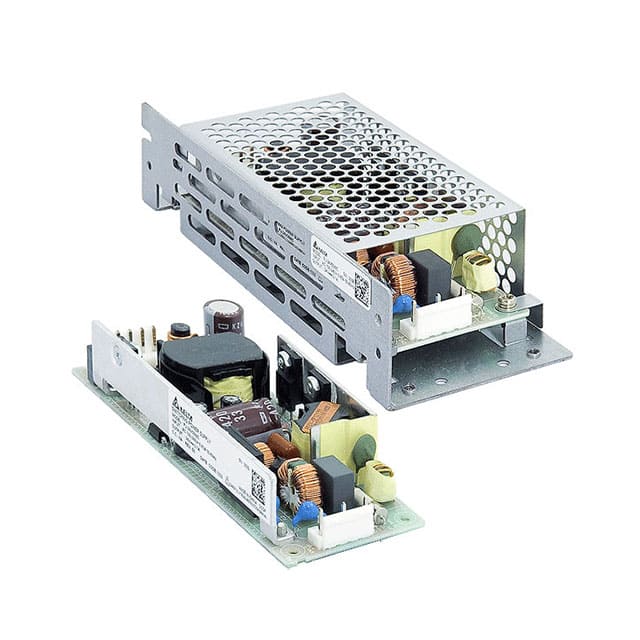

The Delta Electronics PJ-48V50WLNA is an open frame AC DC converter designed for ITE (Commercial) applications. It provides a 50W output power with a 48V nominal voltage and a current rating of 1.1A. This converter features adjustable output, Power Factor Correction (PFC), and universal input capabilities, making it versatile for various power supply needs.
The unit has an efficiency of 85% and operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 162.0mm x 60.0mm x 36.0mm, suitable for chassis mounting. The PJ-48V50WLNA is approved by CB, CE, cURus, and TUV, ensuring compliance with safety standards.
This model offers a single output and provides 3kV of isolation voltage. It is designed for reliable performance in industrial and commercial environments.
The nominal output voltage is 48V.
The maximum current output is 1.1 A.
The power rating is 50W.
The operating temperature range is -10°C to 70°C, with derating.
This converter is designed for chassis mounting.
