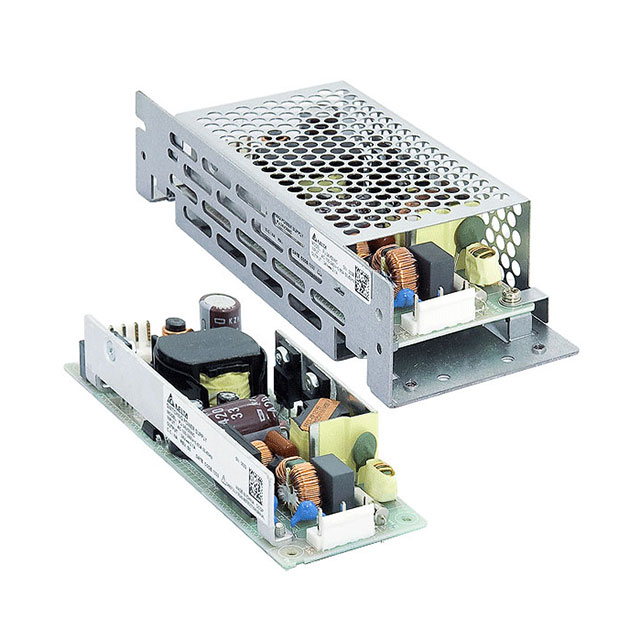

The Delta Electronics PJ-24V50WLNA is an open frame AC/DC power supply designed for ITE (Commercial) applications. It provides a single output of 24V at 2.1A, delivering a total of 50W of power.
This converter operates with a wide input voltage range of 85 to 264 VAC and features adjustable output, power factor correction (PFC), and universal input capabilities. It has an efficiency rating of 87% and an isolation voltage of 3 kV.
The unit is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. It meets RoHS3 compliance and has an MSL rating of 1 Unlimited.
The converter provides 24V at 50W continuous output.
The input range is 85 to 264 VAC (universal input).
Typical efficiency is 87%.
The operating temperature range is -10°C to 70°C with derating.
It is an open frame chassis mount package.
It is approved by CB, CE, cURus, and TUV.
The isolation voltage is 3 kV.
