| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

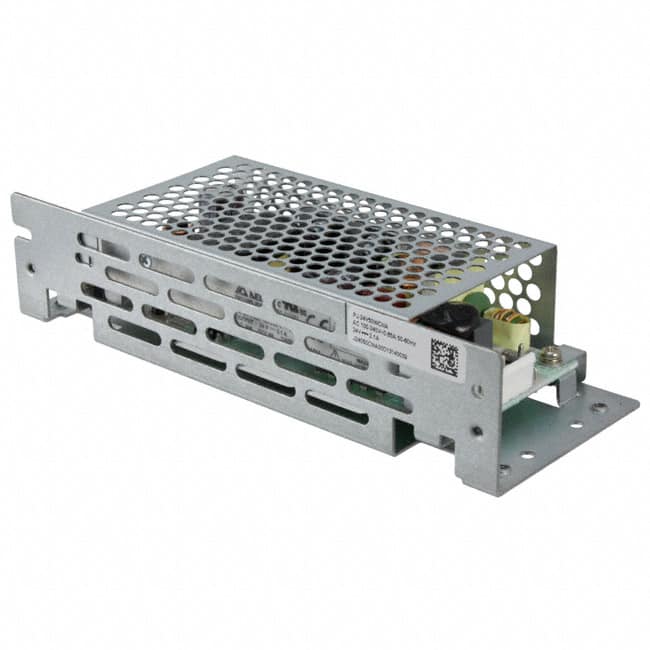

The Delta Electronics PJ-24V50WCNA is an AC/DC converter designed for ITE (Commercial) applications. It provides a 24V output voltage with a current rating of 2.1A, delivering a total power of 50W.
Key electrical features include adjustable output, Power Factor Correction (PFC), and universal input capability, with an efficiency of 87%. The operating temperature range is -10°C to 70°C with derating.
This converter is enclosed and conformal coated, designed for chassis mounting. It has a single output and is approved by CB, CE, cURus, and TUV.
Dimensions are 162.0mm x 60.0mm x 36.0mm.
The output voltage is 24V.
The maximum output current is 2.1A.
The power rating is 50W.
The operating temperature range is -10°C to 70°C, with derating.
It is designed for chassis mounting.
The dimensions are 162.0mm x 60.0mm x 36.0mm.
It is approved by CB, CE, cURus, and TUV.
