| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

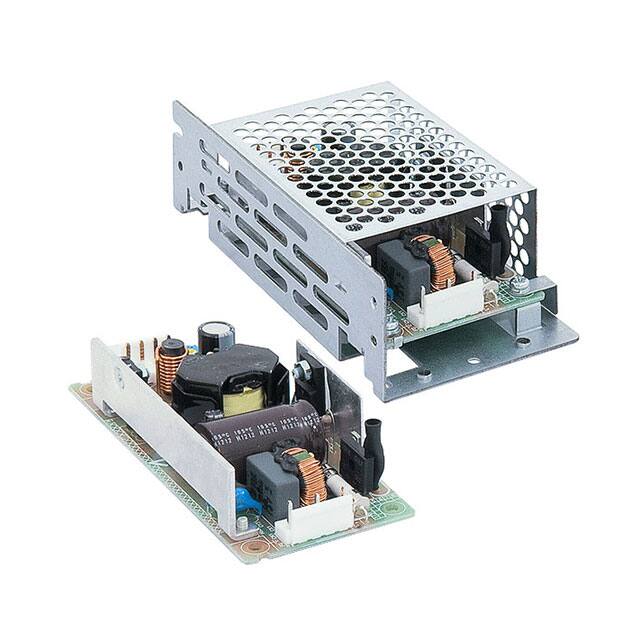

The Delta Electronics PJ-24V30WLNA is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 30W power output with a 1.3A current rating and a 24V output voltage.
Key electrical specifications include an efficiency of 86% and a universal input feature. The operating temperature range is -10°C to 70°C with derating. This converter is approved by CB, CE, cURus, and TUV.
Mechanically, the unit measures 125.0mm x 60.0mm x 36.0mm. It is designed for chassis mounting.
Compliance includes RoHS3 status and an MSL rating of 1 Unlimited.
The output voltage is 24V and the output current is 1.3A.
The power rating is 30W.
The efficiency is 86%.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount.
The dimensions are 125.0mm x 60.0mm x 36.0mm (4.92" x 2.36" x 1.42").
It is approved by CB, CE, cURus, and TUV.
