| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

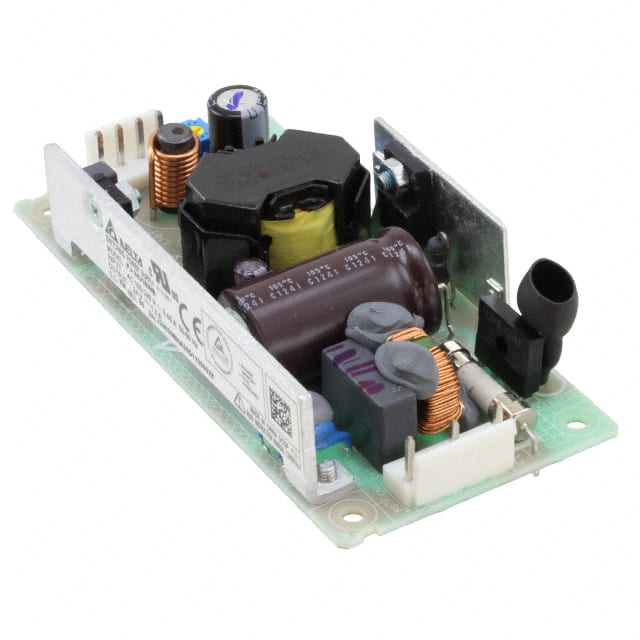

The Delta Electronics PJ-24V30WBNA is an AC/DC converter with a power rating of 30W. It is designed with an open frame and conformal coating for protection.
Key electrical specifications include a 1.3A current output and a voltage rating of 3 kV. The converter operates within a temperature range of -10°C to 70°C with derating. It features adjustable output and universal input capabilities, making it versatile for various applications.
This unit is designed for chassis mounting and is approved by CB, CE, cURus, and TUV. Its applications are primarily for ITE (Commercial) use. The dimensions are 105.0mm x 50.0mm x 25.6mm.
The power output is 30W.
The operating temperature range is -10°C to 70°C, with derating.
It uses chassis mount.
The dimensions are 105.0mm x 50.0mm x 25.6mm.
It is approved by CB, CE, cURus, and TUV.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
