| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

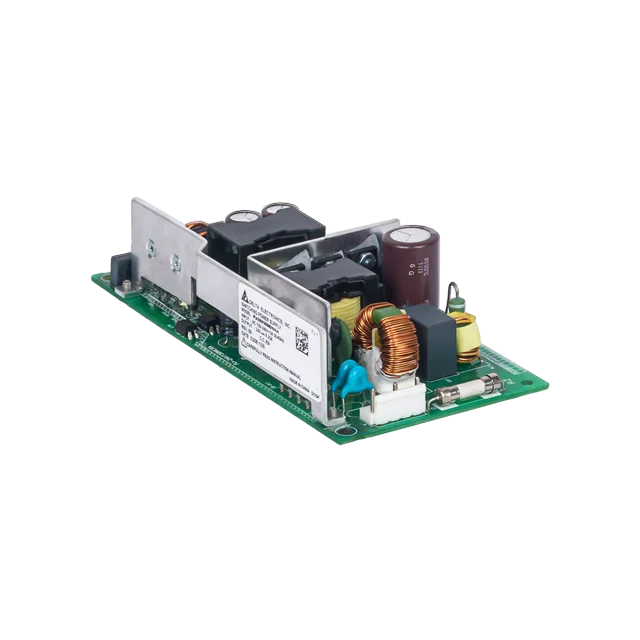

This Delta Electronics PJ-24V150WCRA is an enclosed AC/DC converter with a power output of 150W and a nominal output voltage of 24V. It delivers a maximum current of 6.3A and boasts an efficiency of 91%. The converter supports a single output and features adjustable output, Power Factor Correction (PFC), remote On/Off functionality, and universal input.
Designed for ITE (Commercial) applications, this unit is intended for chassis mounting. It operates within a temperature range of -10°C to 70°C, with derating applied at higher temperatures. The dimensions are 188.0mm in length, 85.0mm in width, and 47.0mm in height.
Key features include its robust construction for industrial environments and compliance with various agency approvals such as CB, CE, cURus, and TUV. The converter is RoHS3 compliant and has an MSL rating of 1.
The output voltage is 24V.
The maximum output current is 6.3A.
The power rating is 150W.
The efficiency is 91%.
It supports chassis mounting.
The operating temperature range is -10°C to 70°C, with derating.
Yes, it is RoHS3 Compliant.
