| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

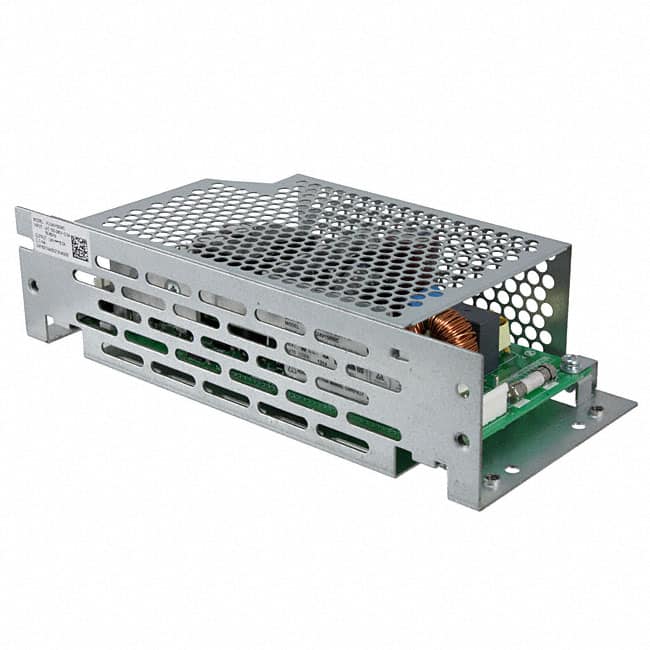

This Delta Electronics PJ-24V150WCNA is an enclosed AC/DC converter with conformal coating, delivering 150W of power. It operates with a 24V output and a current rating of 6.3A. Key features include adjustable output, Power Factor Correction (PFC), and universal input, making it suitable for a wide range of applications.
The converter is designed for chassis mounting and has dimensions of 160.0mm x 75.0mm x 37.0mm. It operates within a temperature range of -10°C to 70°C with derating. The unit boasts an efficiency of 91% and has received approvals from CB, CE, cURus, and TUV.
Its applications are primarily in ITE (Commercial) equipment. The converter supports a 3 kV voltage rating and has a single output channel.
The operating temperature range is -10°C to 70°C with derating.
The converter is enclosed and conformal coated with chassis mount.
The efficiency is 91%.
The output current is 6.3 A.
The isolation voltage is 3 kV.
It is approved by CB, CE, cURus, and TUV.
The dimensions are 160.0mm x 75.0mm x 37.0mm (6.30" x 2.95" x 1.46").
