| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

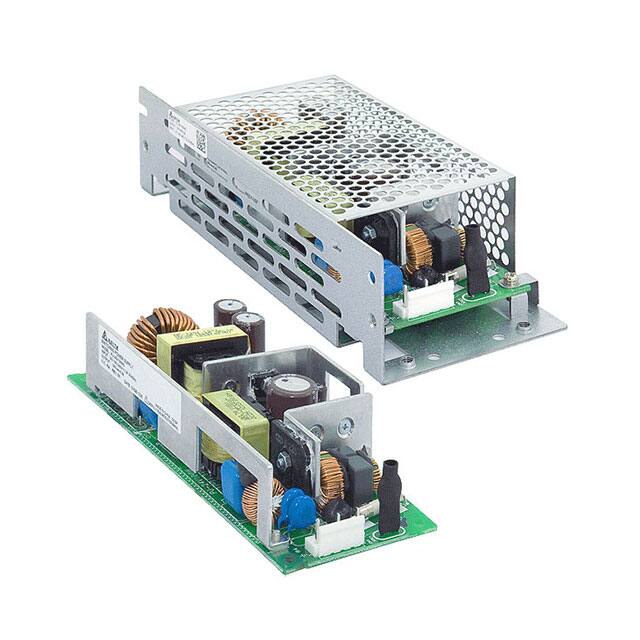

The Delta Electronics PJ-24V100WBRA is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 100W with a 24V output voltage and a current rating of 4.3A.
Key electrical specifications include an efficiency of 89% and an isolation voltage of 3kV. The converter supports adjustable output, Power Factor Correction (PFC), and remote On/Off functionality, along with a universal input. It operates within a temperature range of -10°C to 70°C with derating.
Mechanically, the unit measures 155.0mm in length, 62.0mm in width, and 33.0mm in height. It is designed for chassis mounting. The converter is approved by CB, CE, cURus, and TUV agencies, indicating compliance with various safety and performance standards.
This AC/DC converter is suitable for applications requiring a reliable and efficient power supply in a compact, open frame form factor.
-10°C to 70°C with derating.
89%.
3kV.
CB, CE, cURus, TUV.
24V at 4.3A.
Chassis mount.
155.0mm x 62.0mm x 33.0mm (6.10" x 2.44" x 1.30").
