| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

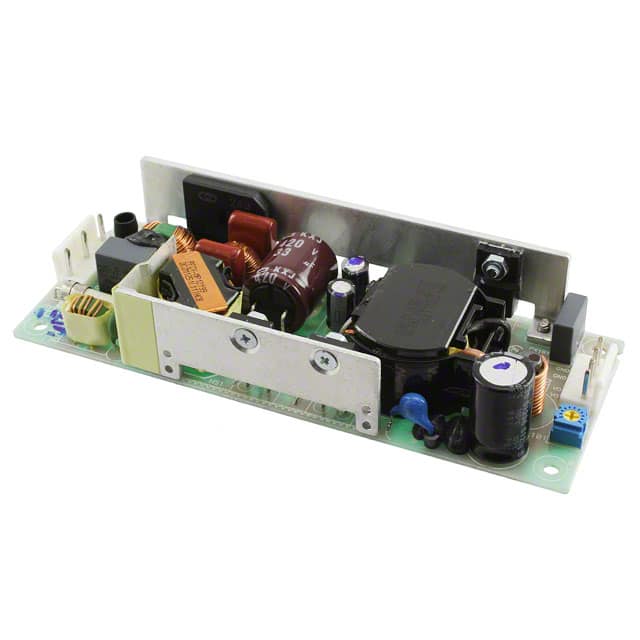

The Delta Electronics PJ-12V50WBNA is an AC/DC converter with a power rating of 50W and an output current of 4.3A. This open frame unit is designed for chassis mounting and offers features such as adjustable output, power factor correction (PFC), and universal input.
With an efficiency of 85% and a voltage rating of 3 kV, this converter is suitable for ITE (Commercial) applications. It operates within a temperature range of -10°C to 70°C with derating. The dimensions are 132.0mm x 50.0mm x 26.6mm.
Compliance includes CB, CE, cURus, and TUV approvals. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected. This model has a single output.
50W.
85%.
-10°C to 70°C with derating.
132.0mm x 50.0mm x 26.6mm (5.20" x 1.97" x 1.05").
3 kV.
Chassis mount.
CB, CE, cURus, TUV.
