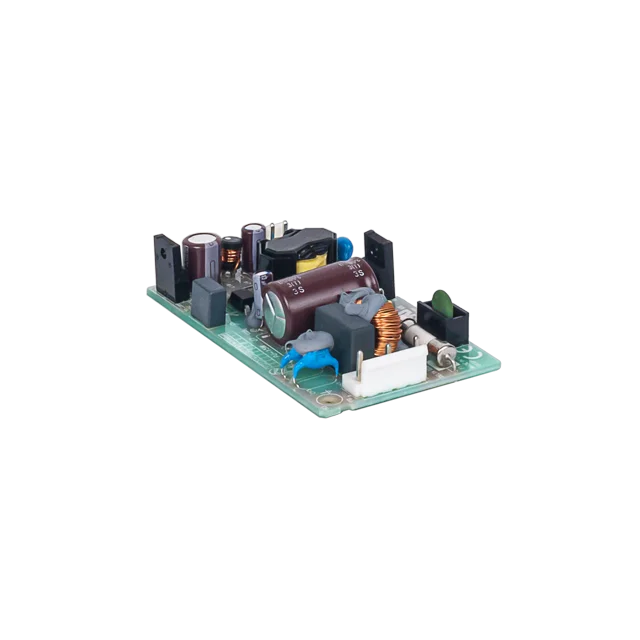

The Delta Electronics PJ-12V15WBNA is an AC/DC converter designed for ITE (Commercial) applications. This open frame unit features conformal coating for added protection and operates with a universal input.
Key electrical specifications include a power output of 15W and a current rating of 1.3A. It boasts an efficiency of 82.5% and provides adjustable output with features like universal input. The isolation voltage is rated at 3 kV.
Mechanically, the converter has dimensions of 87.5mm in length, 50.0mm in width, and 22.0mm in height. It is designed for chassis mounting and operates within a temperature range of -10°C to 70°C, with derating applied.
Compliance is indicated by approval agencies including CB, CE, cURus, and TUV. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The power output is 15W.
The output current is 1.3 A.
The dimensions are 87.5mm in length, 50.0mm in width, and 22.0mm in height.
The operating temperature range is -10°C to 70°C, with derating.
It supports chassis mount.
Yes, it is RoHS3 Compliant.
