| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Mounting Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

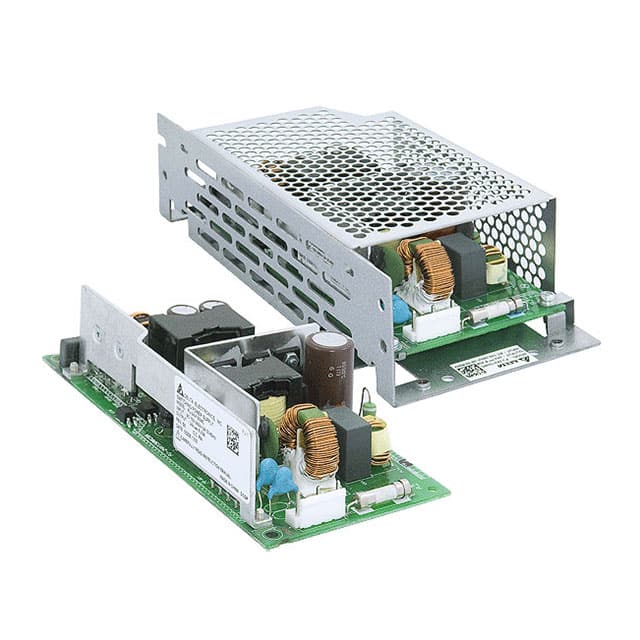

The Delta Electronics PJ-12V150WLRA is an enclosed AC/DC converter designed for industrial and medical applications. It provides a stable 12V DC output with a maximum current of 12.5A, delivering a total output power of 150W. The unit operates with an input voltage range of 85 VAC to 264 VAC and a frequency of 50 Hz to 60 Hz, offering universal input capability.
Key electrical specifications include an efficiency of 91% and an isolation voltage of 3 kVAC. The converter features adjustable output, power factor correction (PFC), and remote on/off functionality, enhancing its versatility in various system designs. It is designed for panel mounting and has a regulated output.
With dimensions of 187.96 mm in length, 85.09 mm in width, and 46.99 mm in height, the PJ-12V150WLRA is suitable for integration into various equipment. The operating temperature range is -10°C to 70°C with derating. Approvals include CB, CE, cURus, and TUV, indicating compliance with relevant safety and performance standards for ITE (Commercial) applications.
The PJ-12V150WLRA provides a 12 VDC output voltage at a maximum current of 12.5 A.
The maximum output power for the PJ-12V150WLRA is 150 W.
The input voltage range is 85 VAC to 264 VAC.
The efficiency of this converter is 91%.
The operating temperature range is -10°C to 70°C, with derating applied.
The dimensions are 187.96 mm in length, 85.09 mm in width, and 46.99 mm in height.
Yes, the PJ-12V150WLRA features remote on/off functionality.
