| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

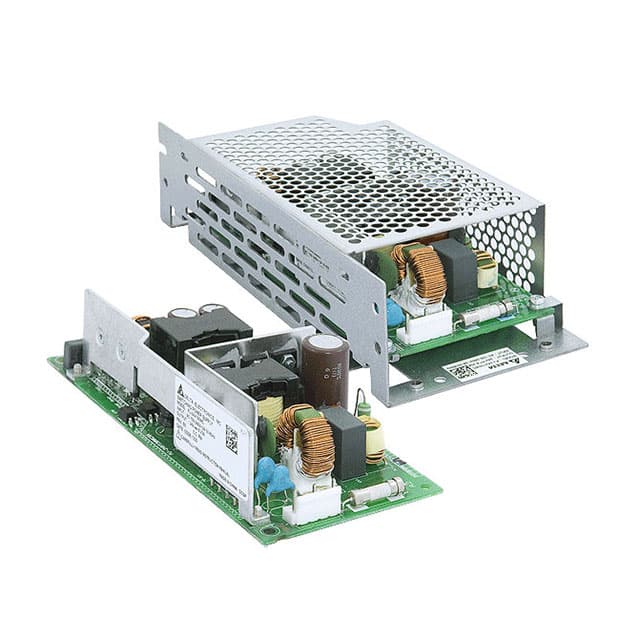

This Delta Electronics PJ-12V150WLNA is an AC/DC converter designed for ITE (Commercial) applications. It operates with a 150W power output and provides a 12.5A current rating.
The converter features an open-frame construction and is designed for chassis mounting. Key electrical specifications include a 91% efficiency and a universal input capability. It also offers adjustable output and Power Factor Correction (PFC).
Mechanical dimensions are 188.0mm in length, 85.0mm in width, and 47.0mm in height. The operating temperature range is -10°C to 70°C with derating. It has passed approvals from CB, CE, cURus, and TUV.
This unit has one output and provides a 3 kV voltage breakdown. It is RoHS3 compliant and has an MSL rating of 1.
The output power is 150W.
The output current is 12.5 A.
The operating temperature range is -10°C to 70°C (With Derating).
It supports chassis mount.
Features include adjustable output, PFC, and universal input.
It is RoHS3 Compliant.
The MSL is 1 Unlimited.
