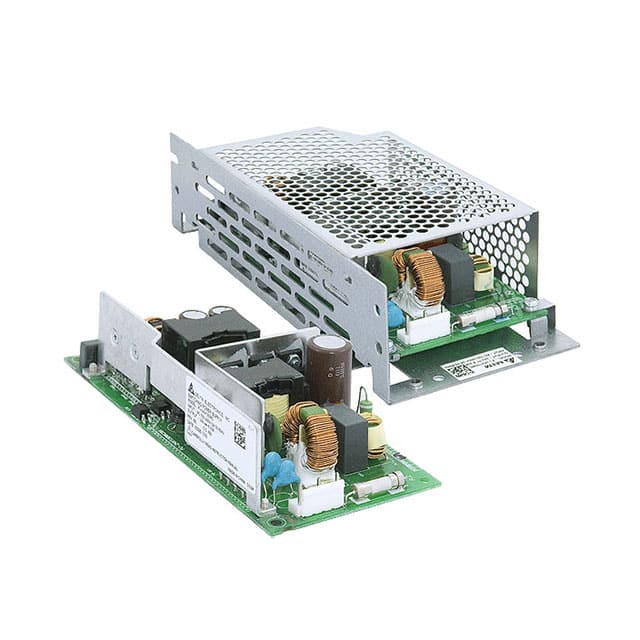

The Delta Electronics PJ-12V150WCRA is a 150W AC/DC converter designed for ITE (Commercial) applications. It offers a stable 12V output with a nominal current of 12.5A and an efficiency of 91% typical.
Key features include adjustable output, Power Factor Correction (PFC), remote on/off capability, and universal input voltage. The operating temperature range is -10°C to 70°C with derating. Its enclosed type and chassis mount design make it suitable for integration into various systems.
With dimensions of 188.0mm x 85.0mm x 47.0mm, this converter is built for reliable performance in demanding environments. It has a single output and is approved by CB, CE, cURus, and TUV agencies.
The nominal output voltage is 12V.
The maximum output current is 12.5A.
This AC/DC converter has a power rating of 150W.
The typical efficiency is 91%.
The operating temperature range is -10°C to 70°C, with derating.
It is designed for chassis mounting.
Key features include adjustable output, PFC, remote On/Off, and universal input.
