| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

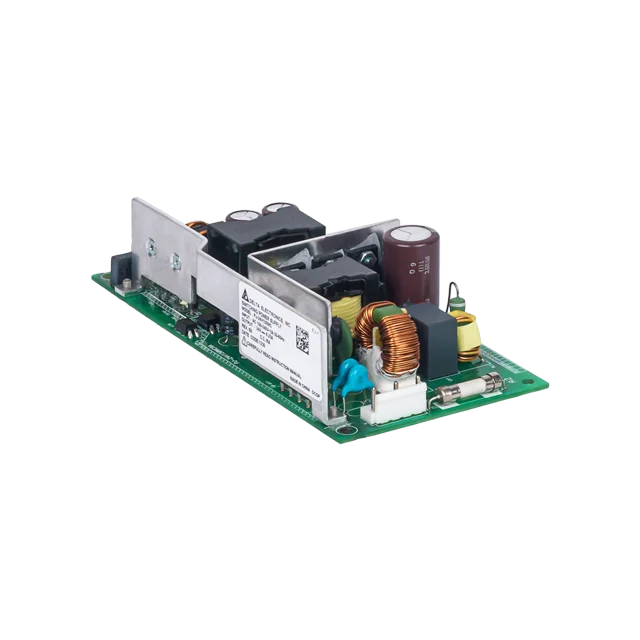

This Delta Electronics PJ-12V150WCNA is an AC/DC converter from the PJ Series, delivering 150W of power with a single 12V output at 12.5A. It is designed for industrial applications and features adjustable output, power factor correction (PFC), and universal input capabilities.
The converter has an efficiency rating of 91% and operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 188.0mm x 85.0mm x 47.0mm, and it is suitable for chassis mounting. The unit is enclosed and features conformal coating for added protection.
Key electrical specifications include an isolation voltage of 3 kV. The converter is approved by CB, CE, cURus, and TUV, making it suitable for ITE (Commercial) applications. It supports features like adjustable output and universal input.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. However, these compliance details are currently unverified and should be reviewed.
The PJ-12V150WCNA has an output voltage of 12V and a maximum output current of 12.5A.
The power rating of the PJ-12V150WCNA is 150W.
Key features include adjustable output, PFC, and universal input.
The operating temperature range is -10°C to 70°C, with derating.
The dimensions are 188.0mm x 85.0mm x 47.0mm.
It supports chassis mounting.
