| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

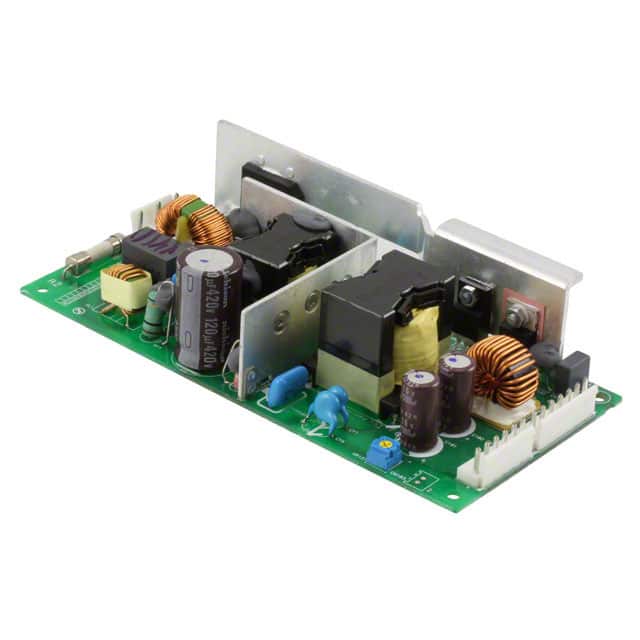

The Delta Electronics PJ-12V150WBNA is an open-frame AC/DC converter designed for industrial applications. It delivers 150W of power with a 12.5A output current and features a conformal coated design for enhanced durability.
Key electrical specifications include a 91% efficiency rating and universal input capability. The converter supports adjustable output and Power Factor Correction (PFC). It operates within a temperature range of -10°C to 70°C with derating.
This AC/DC converter is suitable for ITE (Commercial) applications and is chassis mountable. It has received approvals from CB, CE, cURus, and TUV, ensuring compliance with various industry standards. The dimensions are 160.0mm x 75.0mm x 37.0mm.
12V at 12.5A.
91%.
-10°C to 70°C with derating.
CB, CE, cURus, TUV.
Chassis mount.
160.0mm x 75.0mm x 37.0mm.
Yes, it features PFC.
