| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

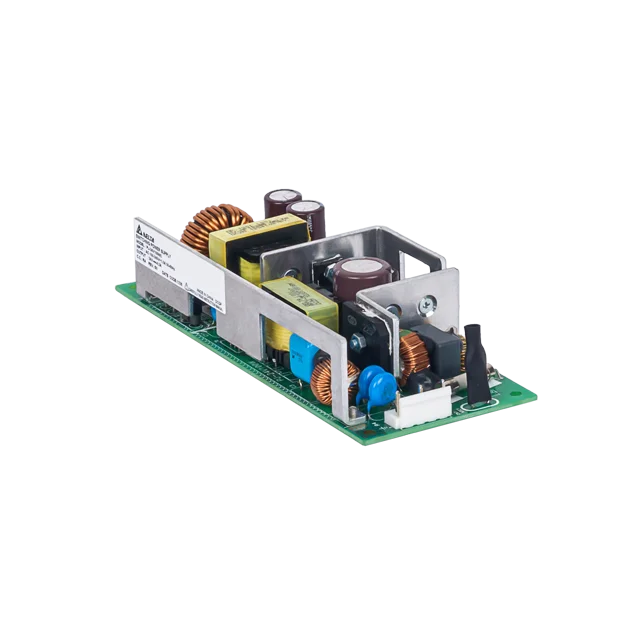

The Delta Electronics PJ-12V100WLRA is a 100W AC/DC converter designed for industrial applications. It provides a 12V output voltage with a maximum current of 8.5A. This converter features adjustable output, active Power Factor Correction (PFC), and a universal input voltage range, making it versatile for various power systems.
With an efficiency of 87.5%, the PJ-12V100WLRA operates within a temperature range of -10°C to 70°C, with derating applied at higher temperatures. Its dimensions are 185.0mm in length, 72.0mm in width, and 45.0mm in height, suitable for chassis mounting.
The unit is approved by CB, CE, cURus, and TUV, indicating compliance with international safety and performance standards. It is designed for ITE (Commercial) applications and includes features like remote On/Off control and universal input.
This power supply has a single output and offers a dielectric strength of 3 kV. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The output voltage is 12V and the output current is 8.5A.
The power rating is 100W.
The efficiency is 87.5%.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 185.0mm x 72.0mm x 45.0mm (7.28" x 2.83" x 1.65").
It has CB, CE, cURus, and TUV approvals.
Features include adjustable output, PFC, remote on/off, and universal input.
