| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

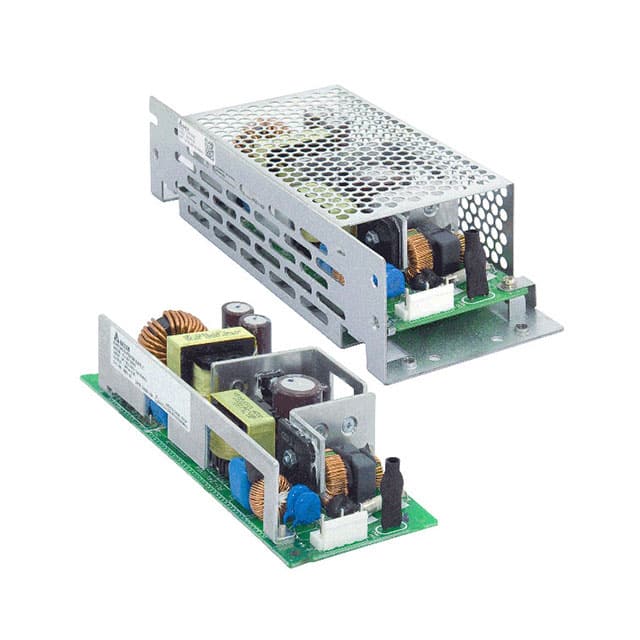

The Delta Electronics PJ-12V100WCRA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 100W with a current rating of 8.5A and features adjustable output, Power Factor Correction (PFC), and universal input capabilities.
This converter is suitable for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. It boasts an efficiency of 87.5% and includes features like remote On/Off functionality. The unit is approved by CB, CE, cURus, and TUV.
Key specifications include a single output, a voltage rating of 3 kV, and dimensions of 185.0mm x 72.0mm x 45.0mm. The PJ-12V100WCRA is RoHS3 compliant and has an MSL of 1.
The power output is 100W.
The current rating is 8.5 A.
Key features include adjustable output, PFC, remote On/Off, and universal input.
The operating temperature range is -10°C to 70°C (With Derating).
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
