| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

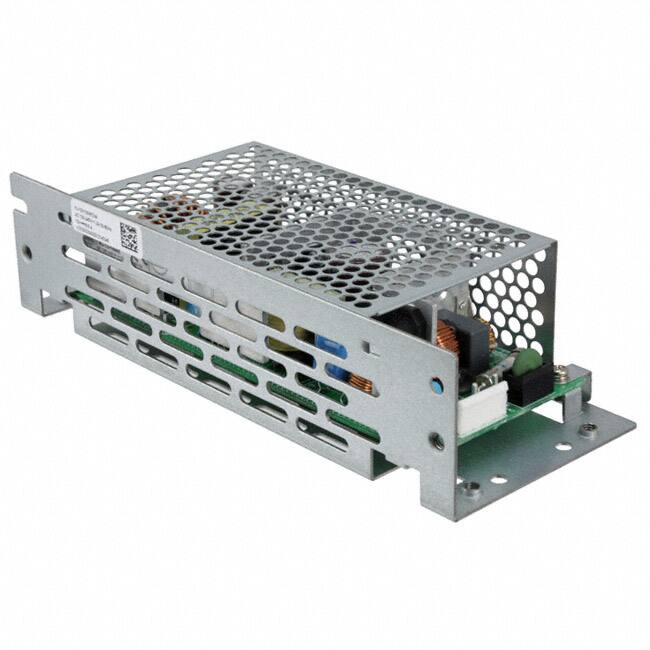

The Delta Electronics PJ-12V100WCNA is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers 100W of power with a single 12V output and a maximum current of 8.5A.
Key electrical specifications include an efficiency of 87.5% and a 3kV isolation voltage. The unit operates within a temperature range of -10°C to 70°C with derating. Features such as adjustable output, Power Factor Correction (PFC), and universal input enhance its usability.
Mechanically, the converter measures 185.0mm x 72.0mm x 45.0mm and is designed for chassis mounting. It carries approvals from CB, CE, cURus, and TUV, indicating compliance with various safety and performance standards.
This converter is suitable for various industrial and commercial applications requiring a reliable power supply solution.
The output power is 100W.
The output voltage is 12V and the output current is 8.5A.
Key features include adjustable output, PFC, and universal input.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 185.0mm x 72.0mm x 45.0mm.
It uses chassis mount.
Approval agencies include CB, CE, cURus, and TUV.
