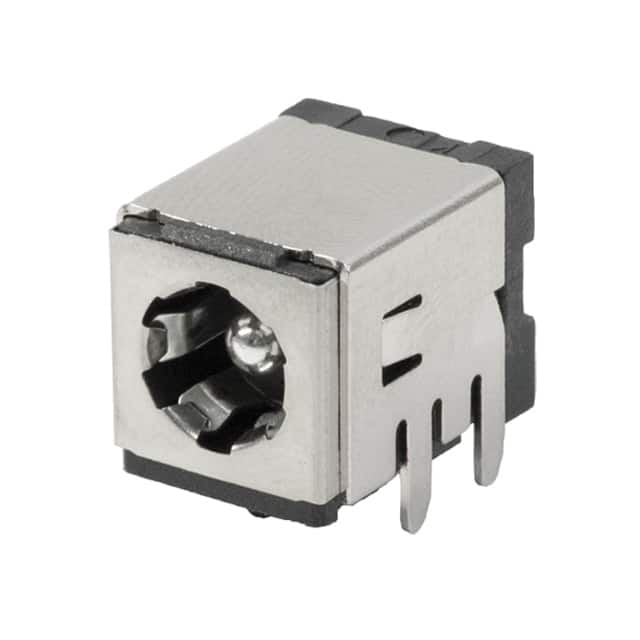

The PJ-082BH is a DC power jack manufactured by CUI Devices (now Same Sky). It is a shielded, male connector with 2 conductors and 2 contacts, designed for through hole, right angle mounting with solder termination.
This jack has an industry recognized mating diameter of 2.50mm inner diameter and 5.50mm outer diameter, with an actual diameter of 2.50mm ID and 6.00mm OD. It is rated for 36 Vdc input voltage and 10 A input current. Contact resistance is 30 mOhm, insulation resistance is 100 MOhm at 500 Vdc, and it can withstand 500 Vac for 1 minute. The insertion/withdrawal force ranges from 0.3 to 3 kg, and it is rated for 5000 cycles of mating.
The housing is made of PA9T (UL94 V-0) black. The center pin and terminal 1 are zinc alloy with nickel plating, terminal 2 is phosphor bronze C5191 with silver plating, the stopper is brass C2680, shield A is steel SPCC with nickel plating, and shield B is stainless steel SUS 301. The component is RoHS compliant and has a flammability rating of UL94 V-0.
It is packaged in tape and reel with a reel size of Ø330 mm and a standard package quantity of 200 pieces per reel. The operating temperature range is -25°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.86 | $1.86 |
| 10+ | $1.58 | $1.58 |
| 25+ | $1.48 | $1.48 |
| 50+ | $1.41 | $1.41 |
| 100+ | $1.34 | $1.34 |
| 200+ | $1.28 | $1.28 |
| 400+ | $1.22 | $1.22 |
| 600+ | $1.18 | $1.18 |
| 1,000+ | $1.14 | $1.14 |
| 1,400+ | $1.11 | $1.11 |
| 2,000+ | $1.09 | $1.09 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 conductors and 2 contacts.
10 A.
36 Vdc.
Through hole, right angle.
Yes, it is shielded.
-25°C to 85°C.
2.50mm inner diameter and 5.50mm outer diameter.
