Mfr Part #:

PJ-063BH

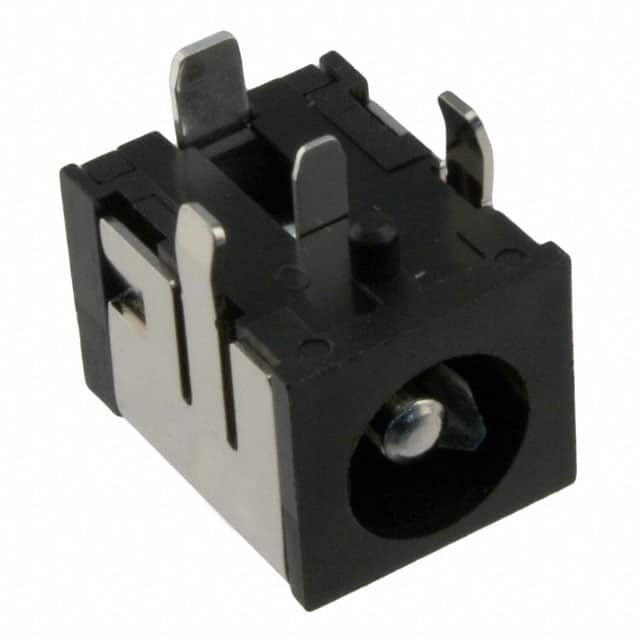

Name: PJ-063BH
Brand: CUI Devices
SKU: PJ-063BH

Mfr Name: CUI Devices

Description:

CONN POWER JACK 2.5X5.5MM

Stock on Request

PJ-063BH Description

Short technical summary and product information.

CONN POWER JACK 2.5X5.5MM

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Power Connectors
Manufacturer Name	CUI Devices
Actual Diameter	0.098" (2.50mm ID), 0.256" (6.50mm OD)
Connector Type	Jack
Current Rating (Amps)	8 A
Features	Board Guide
Gender	Male
Industry Recognized Mating Diameter	2.50mm ID (0.098"), 5.50mm OD (0.217")
Internal Switch(s)	Does Not Contain Switch
Material Flammability Rating	UL94 V-0
Mating Length	0.348" (8.85mm)
Mounting Type	Through Hole, Right Angle
Number of Positions	2 Conductors, 2 Contacts
Operating Temperature	-25°C ~ 85°C
Shielding	Shielded
Termination	Kinked Pin
Voltage	24VDC
