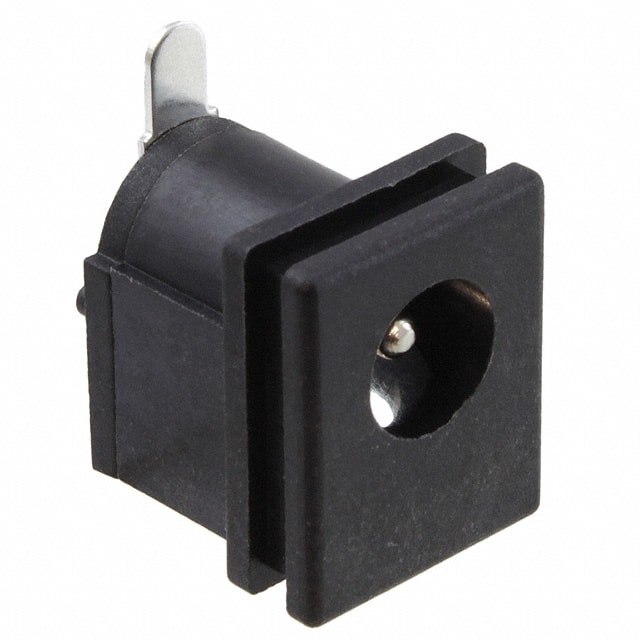

The PJ-015AH-SMT-TR is a surface mount DC power jack from CUI Devices (now Same Sky). It features a 2.10mm inner diameter and 5.50mm outer diameter mating plug with an actual pin diameter of 2.00mm and outer barrel of 6.60mm. Rated for 5A at 24VDC, this connector offers a single normally closed switch and has a contact resistance of 30mOhm maximum. The housing is made of PA10T with UL94V-0 flammability rating. Termination is solder and the part includes a board guide for alignment. The operating temperature range is -25°C to 85°C, and it is rated for 5000 mating cycles. Packaging is 200 pieces per 380mm reel. The part is RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.57 | $1.57 |
| 10+ | $1.34 | $1.34 |
| 25+ | $1.25 | $1.25 |
| 50+ | $1.19 | $1.19 |
| 100+ | $1.14 | $1.14 |
| 200+ | $1.08 | $1.08 |
| 400+ | $1.03 | $1.03 |
| 600+ | $1.00 | $1.00 |
| 1,000+ | $0.97 | $0.97 |
| 1,400+ | $0.94 | $0.94 |
| 2,000+ | $0.92 | $0.92 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 conductors, 3 contacts
5 A
24 VDC
Surface Mount
-25°C to 85°C
5000 cycles
Unshielded
