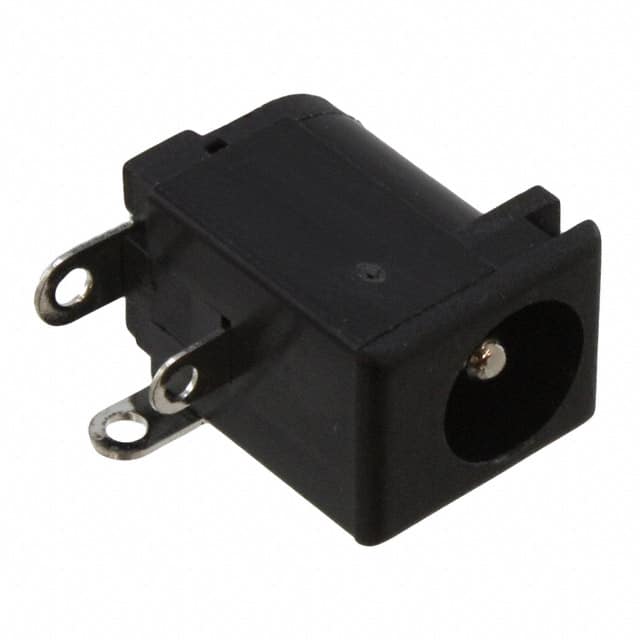

The PJ-002A is a DC power jack manufactured by CUI Devices, designed for reliable power input applications. It features a 2.1mm center pin diameter and a 5.5mm outer diameter, with a mating length of 9.00mm and an insertion depth of 9.5mm. The connector is rated for an input voltage of 24V DC and a continuous current of 2.5A. Electrical characteristics include a contact resistance of 30 mΩ, insulation resistance of 100 MΩ at 500 Vdc, and a voltage withstand of 500 V for 1 minute.
Mechanically, the jack offers a through hole, right angle mounting with solder eyelet termination. It is unshielded and incorporates a single switch that is normally closed. The insertion/withdrawal force ranges from 0.3 kg to 3 kg, and the terminal strength is a minimum of 500 g. The connector is rated for a minimum of 5,000 mating cycles, ensuring durability in frequent-use applications.
The operating temperature range spans -40°C to 85°C, and the housing is made of PBT with a UL94 V-0 flammability rating. The component is suitable for wave soldering with a typical temperature of 260°C. It is RoHS compliant, meeting environmental standards for lead-free manufacturing.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.58 | $0.58 |
| 10+ | $0.49 | $0.49 |
| 25+ | $0.46 | $0.46 |
| 50+ | $0.44 | $0.44 |
| 100+ | $0.42 | $0.42 |
| 400+ | $0.38 | $0.38 |
| 800+ | $0.36 | $0.36 |
| 1,200+ | $0.35 | $0.35 |
| 2,800+ | $0.33 | $0.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2 conductors, 3 contacts.
2.5 A.
24 V DC.
Through hole, right angle.
-40°C to 85°C.
Yes, RoHS compliant per datasheet.
2.10mm ID, 5.50mm OD.
