Mfr Part #:

PIP212-12M,518

Name: PIP212-12M,518
Brand: NXP Semiconductors
SKU: PIP212-12M,518

Mfr Name: NXP Semiconductors

Description:

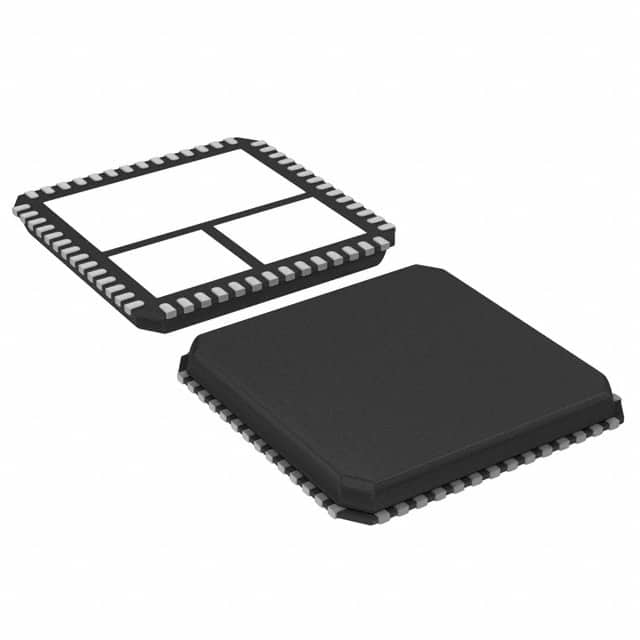

IC HALF BRIDGE DRVR 35A 56HVQFN

Stock on Request

PIP212-12M,518 Description

Short technical summary and product information.

IC HALF BRIDGE DRVR 35A 56HVQFN

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Full Half-Bridge Drivers
Manufacturer Name	NXP Semiconductors
Applications	Synchronous Buck Converters
Current	60A
Fault Protection	Over Temperature, UVLO
Features	Bootstrap Circuit, 5V Regulated Output
Interface	PWM
Load Type	Inductive
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Output Configuration	Half Bridge
Rds On (Typ)	1.9mOhm LS, 6.5mOhm HS
Supplier Device Package	56-HVQFN (8x8)
Technology	DrMOS
Voltage	24V (Max)
