| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,020 pcs
|
5020 pcs | On Request | 1 | On Request | On Request | 12+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Mounting Type | |
| Operating Temperature | |
| RAM Size | |
| Voltage |

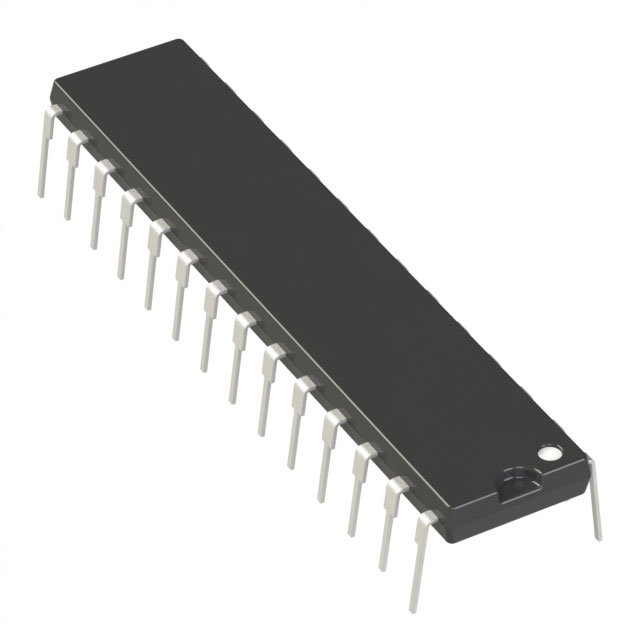

The PIC24HJ32GP202-I/SP from Microchip Technology is a high-performance 16-bit microcontroller designed for embedded applications. It is built around a PIC24H CPU core, offering efficient code execution and a maximum speed of 40 MIPS. The device is equipped with 32KB of program Flash memory and 2KB of RAM, providing ample space for code and data.
Key features include a versatile ADC module configurable for 10-bit or 12-bit resolution, multiple timers, output compare, and input capture modules. Communication interfaces include UART (up to 10 Mbps), SPI (up to 15 Mbps), and I2C (up to 1 Mbaud), along with support for LIN 2.0 and IrDA protocols. The microcontroller operates within a voltage range of 3.0V to 3.6V and offers 21 I/O pins.
This microcontroller is housed in a 28-pin SPDIP package suitable for through-hole mounting. It meets AEC-Q100 Grade 0 qualification and supports IEC 60730 Class B safety library requirements, making it suitable for demanding applications. Development is supported by Microchip's MPLAB X IDE and XC16 compiler.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.55 | $5.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 3.0V to 3.6V.
The microcontroller can operate at speeds up to 40 MIPS.
It has 32KB of program Flash memory.
The RAM size is 2KB.
It is available in a 28-pin SPDIP package.
The mounting type is Through Hole.
