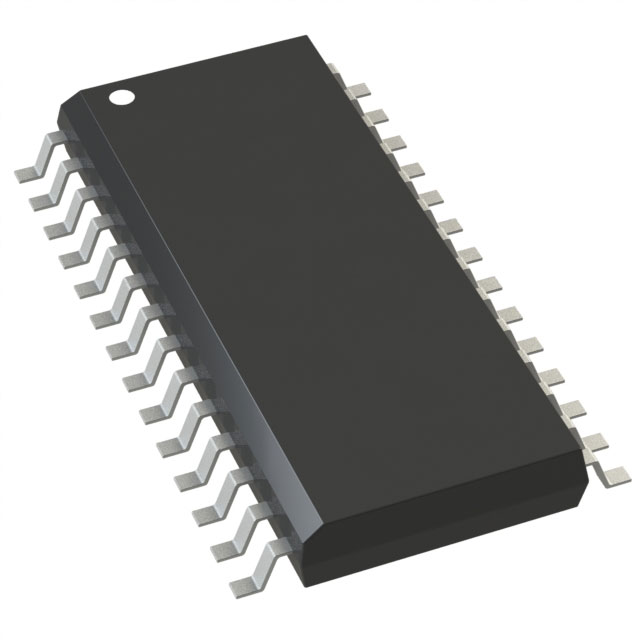

PIC18F24K22-I/SO The Microchip Technology PIC18F24K22-I/SO is an 8-bit microcontroller with 16KB of FLASH program memory and 768 bytes of RAM. It operates at speeds up to 64MHz.
Mfr Part #:

PIC18F24K22-I/SO

Available from 3 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology PIC18F24K22-I/SO is an 8-bit microcontroller with 16KB of FLASH program memory and 768 bytes of RAM. It operates at speeds up to 64MHz.
✓ Total Stock: 2,542 pcs
$ Price Range: $6.40

PIC18F24K22-I/SO Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,712 pcs
On Request
1712 pcs On Request 1 On Request On Request On Request On Request On Request
Fe Components ✓
Non-Authorised Inventory information
444 pcs
On Request
444 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
386 pcs
On Request
386 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PIC18F24K22-I/SO Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connectivity
Core Processor
Core Size
Data Converters
EEPROM Size
Lead Spacing
Mounting Type
Number of I
Number of I/O
Operating Temperature
Operating Voltage
Oscillator Type
Peripherals
Program Memory Size
Program Memory Type
RAM Size
Speed
Supplier Device Package
Voltage
View Similar Products (0)

PIC18F24K22-I/SO Description

Short technical summary and product information.

The PIC18F24K22-I/SO is an 8-bit microcontroller from Microchip Technology, part of the PIC® XLP™ 18K series. It features 16KB of FLASH program memory and 768 bytes of RAM, with an additional 256 bytes of EEPROM.



This microcontroller operates at speeds up to 64MHz with an internal oscillator. It supports I²C, SPI, and UART/USART connectivity and includes peripherals such as Brown-out Detect/Reset, HLVD, POR, PWM, and WDT. The device operates within a voltage range of 2.3V to 5.5V and has 24 I/O pins.



Designed for surface mounting, the PIC18F24K22-I/SO comes in a 28-SOIC package with a width of 7.50mm. It operates across a temperature range of -40°C to 85°C.



Key electrical characteristics include a 19-channel 10-bit A/D converter. The RoHS status is listed as RoHS3 Compliant, with an MSL of 1.

PIC18F24K22-I/SO Quick Information

Product Type: Microcontroller
Series: PIC® XLP™ 18K
Canonical Name: PIC18F24K22-I/SO 8-Bit 16KB FLASH 28-SOIC Microcontroller
Subcategory: Embedded Microcontrollers

PIC18F24K22-I/SO Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PIC18F24K22-I/SO Estimated Pricing

Qty Low High
1+ $6.40 $6.40

Estimated market price range - modelled values for guidance only, not live distributor offers.

PIC18F24K22-I/SO Features

  • 8-bit PIC core processor.
  • 16KB FLASH program memory.
  • 768 bytes RAM size.
  • 64MHz operating speed.
  • Surface mount 28-SOIC package.

PIC18F24K22-I/SO Applications

  • Embedded control in industrial systems
  • Consumer electronics applications
  • Data acquisition and processing
  • Space-constrained control modules

PIC18F24K22-I/SO FAQs

3 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the PIC18F24K22-I/SO?

The operating voltage is 2.3V to 5.5V.

What package type is the PIC18F24K22-I/SO microcontroller supplied in?

It is supplied in a 28-SOIC package.

What is the operating temperature range for the PIC18F24K22-I/SO?

The operating temperature range is -40°C to 85°C.
