| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | 909 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Architecture | |
| Clock Frequency | |
| Core Processor | |
| Core Size | |
| Failure Rate | |
| Interface | |
| Lead Style | |
| Mounting Type | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Resolution | |
| SVHC Present | |
| Supply Voltage | |
| Watchdog Timer |

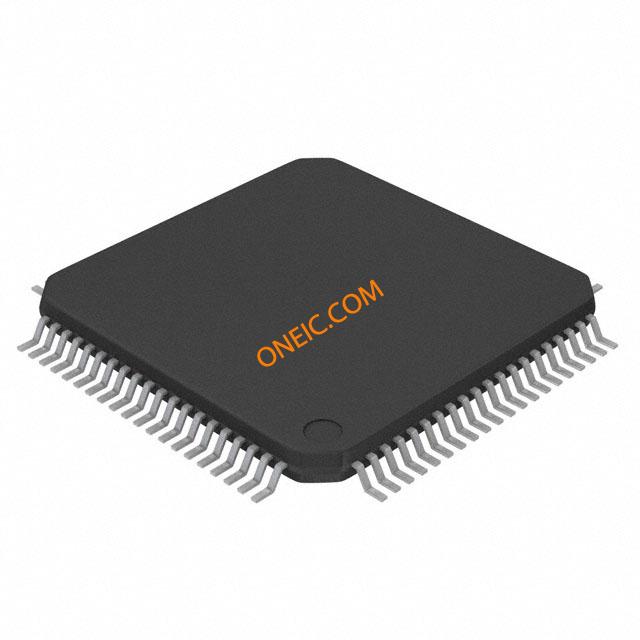

The Microchip PIC17C766-16/PT is an 8-bit microcontroller based on the PIC RISC architecture. It provides 32KB of EPROM program memory and 902 bytes of RAM, supporting a clock speed of up to 16 MHz. This device features 66 general-purpose I/O pins and includes peripherals such as a watchdog timer, Brown-out Detect/Reset, POR, and PWM.
Designed for embedded applications, the PIC17C766-16/PT operates within a supply voltage range of 4.5V to 5.5V. It includes a 16-channel 10-bit Analog-to-Digital Converter (ADC). The microcontroller is housed in an 80-pin TQFP package, suitable for Surface Mount Device (SMD) mounting.
Key electrical characteristics include an 8-bit core, I2C, SPI, and USART interfaces, and a maximum power dissipation of 1000 mW. The operating temperature range is from 0°C to 70°C, making it suitable for various industrial and commercial applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.37 | $6.37 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The clock speed is 16 MHz.
It has 902 bytes of RAM.
It has 32 KB of EPROM program memory.
There are 66 I/O pins available.
The supply voltage range is 4.5 V to 5.5 V.
The operating temperature range is 0°C to 70°C.
It is in an 80-TQFP package.
