| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,600 pcs
|
1600 pcs | On Request | 1 | On Request | On Request | 14+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| SVHC Present | |
| Speed | |
| Supplier Device Package | |
| Voltage |

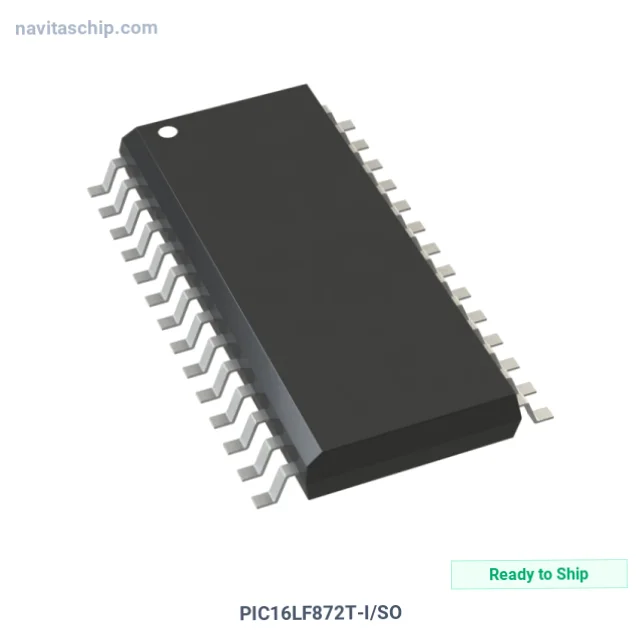

The PIC16LF872T-I/SO is an 8-bit microcontroller from Microchip Technology, designed for embedded applications. It features a 3.5KB Flash program memory and 128 bytes of RAM, along with 64 bytes of EEPROM data memory.
This microcontroller operates at a speed of 20MHz and supports I2C and SPI communication interfaces. It includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. The device has 22 I/O pins and an integrated 10-bit Analog-to-Digital converter with 5 channels.
Designed for surface mounting, the PIC16LF872T-I/SO comes in a 28-SOIC package. It operates within a voltage supply range of 2.2V to 5.5V and has an operating temperature range of -40°C to 85°C (TA). The external oscillator type is utilized for clock generation.
Key specifications include a core processor of PIC, 8-bit core size, and a package/case of 28-SOIC (0.295", 7.50mm Width). It is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 3.5KB (2K x 14).
The operating voltage is 2.2V to 5.5V.
The operating temperature is -40°C to 85°C (TA).
It is supplied in a 28-SOIC package.
Connectivity options include I2C and SPI.
