LM431ACZXA
On Semiconductor
The LM431ACZXA from On Semiconductor is an adjustable shunt voltage reference. It offers a wide output voltage range and is suitable for various power management applications.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type |

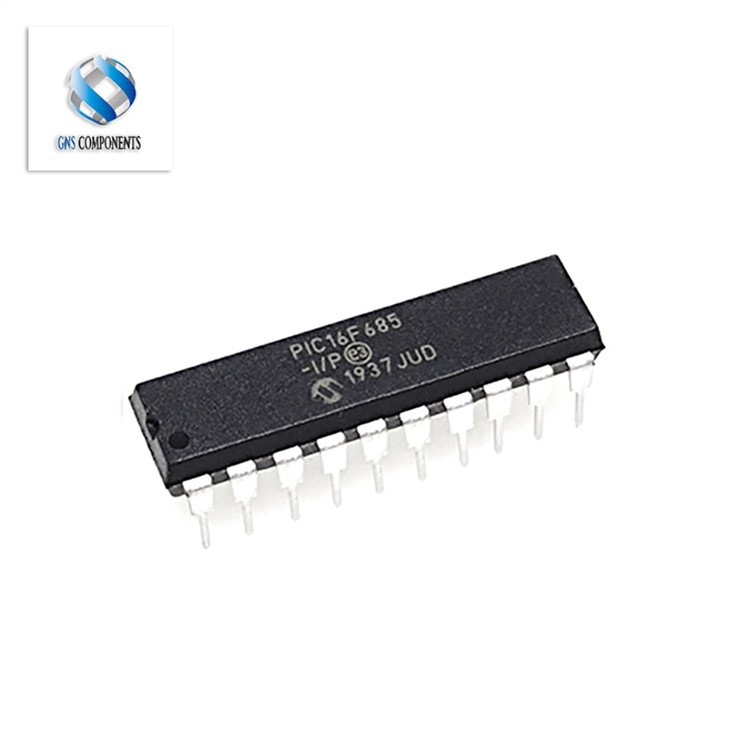

The PIC16F685-I/P is an 8-Bit CMOS Microcontroller manufactured by MCP, designed with nanoWatt Technology for low-power applications. It features a High-Performance RISC CPU with only 35 instructions, enabling efficient processing with single-cycle execution for most instructions.
This microcontroller operates at speeds up to 20 MHz, with an instruction cycle time of 200 ns. It includes an 8-level deep hardware stack for interrupt handling and supports direct, indirect, and relative addressing modes. Low-power features include a typical standby current of 50 nA at 2.0V and operating currents as low as 11 μA at 32 kHz and 2.0V.
The PIC16F685-I/P comes in a DIP20 package suitable for through-hole mounting. Its typical operating current at 4 MHz and 2.0V is 220 μA, and the watchdog timer current is less than 1 μA at 2.0V, making it suitable for power-sensitive designs.
This device is part of the PIC16 family, known for its Flash-Based architecture and integrated features for embedded systems. It is well-suited for various automotive and industrial control applications requiring reliable and efficient microcontroller performance.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.55 | $5.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PIC16F685-I/P microcontroller operates at a maximum speed of 20 MHz.
The PIC16F685-I/P microcontroller is supplied in a DIP20 package.
The typical standby current for the PIC16F685-I/P at 2.0V is 50 nA.
The RISC CPU of the PIC16F685-I/P has 35 instructions.
The PIC16F685-I/P has an 8-level deep hardware stack.
