| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,800 pcs
|
19800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |
The PIC16F18446T-I/GZ from Microchip Technology is an 8-bit microcontroller designed for embedded applications. It offers 28KB of program memory in FLASH format and 2KB of RAM, with an additional 256 bytes of EEPROM.
This microcontroller operates within a voltage range of 2.3V to 5.5V and supports an internal oscillator type. It features a speed of 32MHz and includes peripherals such as Brown-out Detect/Reset, POR, PWM, and WDT. The device also incorporates data converters, including 17 channels of 12-bit Analog-to-Digital and 1 channel of 5-bit Digital-to-Analog conversion.

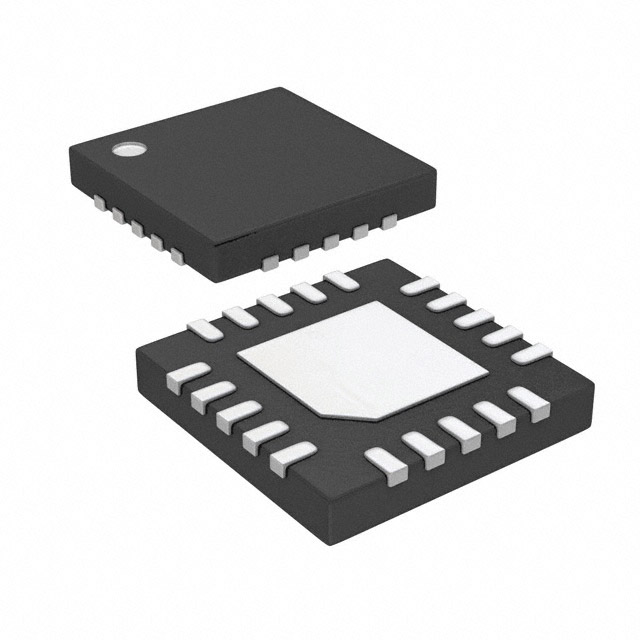

Connectivity options include I²C, LINbus, SPI, and UART/USART interfaces, providing flexibility for various communication needs. The operating temperature range is -40°C to 85°C (TA). The PIC16F18446T-I/GZ is supplied in a 20-UQFN (4x4) package, suitable for surface mount applications.
Key electrical characteristics include 18 I/O pins, making it suitable for a wide range of control and processing tasks in embedded systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3V to 5.5V.
The operating temperature is -40°C to 85°C (TA).
It is supplied in a 20-UFQFN Exposed Pad package.
The program memory size is 28KB (16K x 14).
The RAM size is 2K x 8.
The speed is 32MHz.
Connectivity options include I²C, LINbus, SPI, and UART/USART.
