| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,897 pcs
|
9897 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| EEPROM Size | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Oscillator Type | |
| Program Memory Size | |
| RAM Size | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage Range |

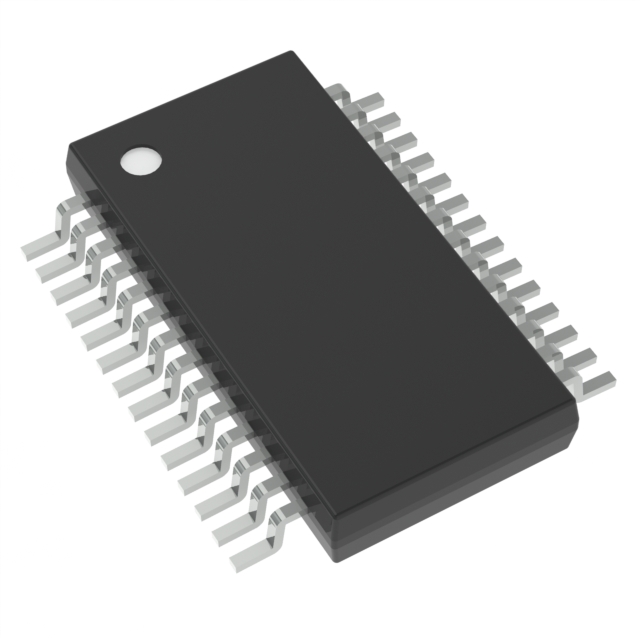

The PIC16F1783-I/SS from Microchip Technology is an 8-bit microcontroller designed for a wide range of embedded applications. It is part of the PIC® XLP™ 16F series and operates at speeds up to 32MHz.
Key features include 7KB of Flash program memory, 512 Bytes of RAM, and 256 Bytes of Data EEPROM. For analog signal processing, it incorporates an 11-channel, 12-bit Analog-to-Digital Converter (ADC) and an 8-bit Digital-to-Analog Converter (DAC).
Connectivity options include I2C, LINbus, SPI, and UART/USART, making it versatile for various communication needs. The device operates within a 2.3V to 5.5V supply voltage range and features 24 I/O pins.
This microcontroller is housed in a 28-pin SSOP package, suitable for surface mount applications. It is compliant with RoHS3 and REACH standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PIC16F1783-I/SS operates at speeds up to 32 MHz.
It has 7KB of Flash program memory.
The PIC16F1783-I/SS has 512 Bytes of RAM.
It features an 11-channel, 12-bit ADC with a 100 ksps conversion rate.
Yes, it includes a 1-channel, 8-bit DAC.
It supports I2C, LINbus, SPI, and UART/USART.
The operating voltage range is 2.3V to 5.5V.
