| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,987 pcs
|
6987 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| EEPROM Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

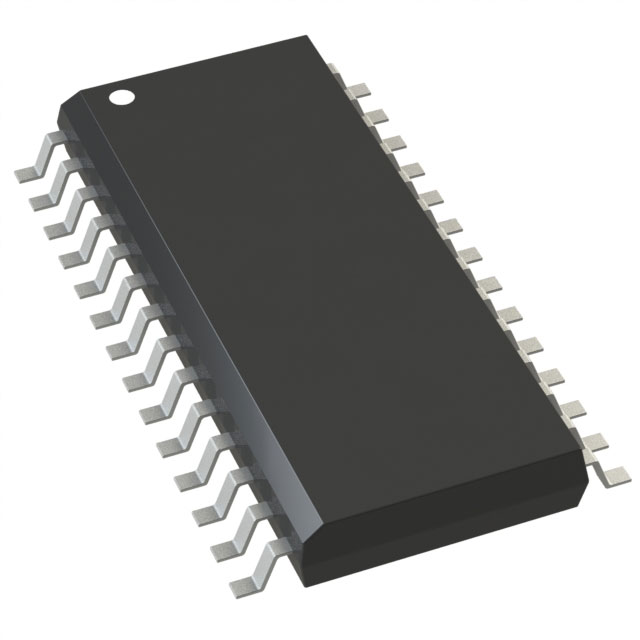

The PIC16F1783-I/SO from Microchip Technology is a high-performance 8-bit microcontroller designed for embedded applications. It is built around a robust PIC core processor and offers 7KB of Flash program memory, along with 512 bytes of RAM and 256 bytes of EEPROM.
This microcontroller operates within a voltage range of 2.3V to 5.5V and supports an internal oscillator, providing flexibility in design. Key peripherals include an 11-channel, 12-bit Analog-to-Digital Converter (ADC) and an 8-bit Digital-to-Analog Converter (DAC). It also features a Programmable Switch Mode Controller (PSMC) for PWM generation.
With 24 I/O pins and a 28-pin SOIC package, the PIC16F1783-I/SO offers ample connectivity. It supports communication interfaces such as I²C, LINbus, SPI, and UART/USART. The device operates across a temperature range of -40°C to 85°C (TA).
Ideal for a wide range of applications including consumer electronics, industrial automation, automotive, medical devices, and IoT solutions, this microcontroller is suitable for designs requiring precise timing and control with low power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3V to 5.5V.
The PIC16F1783-I/SO is available in a 28-SOIC package.
The operating temperature range is -40°C to 85°C (TA).
Key peripherals include an 11-channel 12-bit ADC, an 8-bit DAC, and a PSMC for PWM generation.
It has 7KB of FLASH program memory.
The RAM size is 512 x 8 bytes.
It supports I²C, LINbus, SPI, and UART/USART interfaces.
