| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,251 pcs
|
6251 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Number of I/O | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

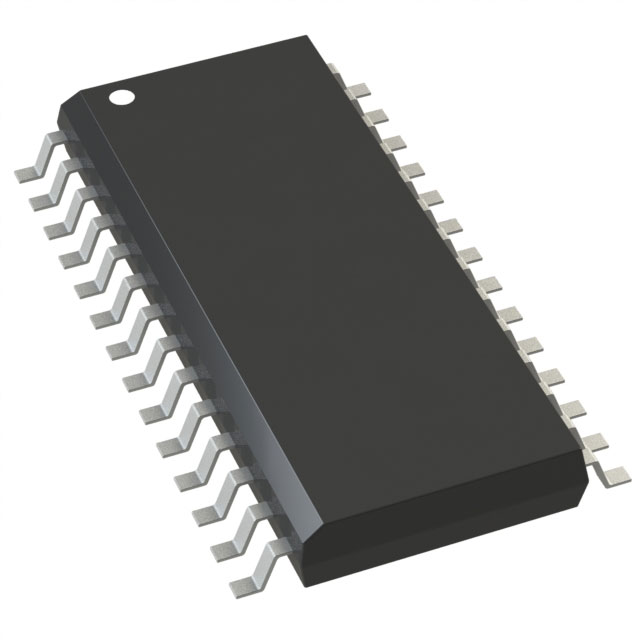

The Microchip Technology PIC16C63A-20I/SO is an 8-bit microcontroller based on the PIC architecture. It features a 7KB (4K x 14) OTP program memory and 192 x 8 bytes of data memory (RAM). This device operates at a speed of 20MHz and requires an external oscillator.
Key peripherals include Timer0, Timer1, Timer2, Capture/Compare/PWM modules, an 8-bit Analog-to-Digital converter, Synchronous Serial Port (SSP) with SPI and I2C, and a Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI). It also includes Brown-out detection circuitry for Brown-out Reset (BOR), Power-on Reset (POR), and a Watchdog Timer (WDT).
The PIC16C63A-20I/SO is housed in a 28-SOIC package with surface mount mounting type. It operates within a voltage range of 4V to 5.5V and has an operating temperature range of -40°C to 85°C (TA). With 22 I/O pins, it is suitable for various embedded applications requiring a compact and versatile microcontroller.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory size is 7KB (4K x 14).
The RAM size is 192 x 8 bytes.
The operating voltage is 4V to 5.5V.
The operating temperature is -40°C to 85°C (TA).
It uses an external oscillator.
Peripherals include Brown-out Detect/Reset, POR, PWM, and WDT.
It supports I²C, SPI, and UART/USART connectivity.
