| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | 05+ | On Request | On Request | |
|
505 pcs
|
505 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request | |
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

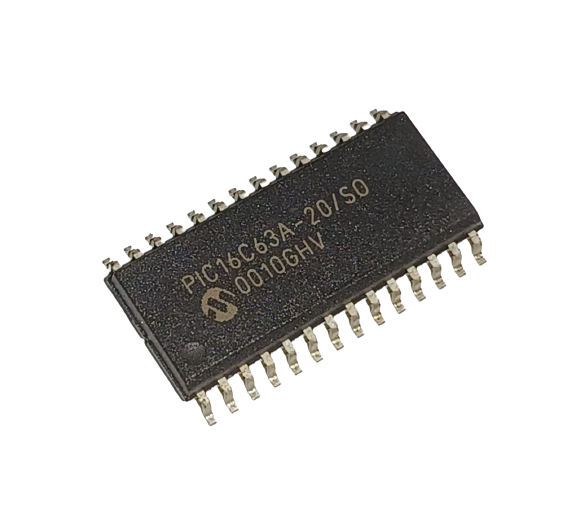

The PIC16C63A-20/SO is an 8-bit microcontroller from Microchip Technology, part of the PIC16C family. It utilizes a high-performance RISC CPU with 35 single-word instructions, achieving an instruction cycle time of 200 ns at a 20 MHz clock input.
This device offers 7KB of One-Time Programmable (OTP) program memory and 192 bytes of data memory (RAM). It includes essential peripherals such as Timer0, Timer1, Timer2, Capture/Compare/PWM modules, an 8-bit Analog-to-Digital converter, and a Synchronous Serial Port (SSP) supporting SPI and I2C protocols. Connectivity options also include a Universal Synchronous Asynchronous Receiver Transmitter (USART/SCI).
The microcontroller operates within a voltage range of 2.5V to 5.5V and has an operating temperature range of 0°C to 70°C (TA). It features 22 programmable I/O pins and supports various core features like Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), and a Watchdog Timer (WDT).
Packaged in a 28-SOIC (Surface Mount) format, the PIC16C63A-20/SO is designed for embedded systems requiring moderate processing power and flexible I/O capabilities. Its low power consumption makes it suitable for a range of applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The PIC16C63A-20/SO has 7KB of OTP program memory.
The RAM size is 192 bytes.
The operating speed is up to 20MHz.
It is available in a 28-SOIC package.
The operating temperature range is 0°C to 70°C (TA).
Connectivity options include I2C, SPI, and UART/USART.
