| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
35,949 pcs
|
35949 pcs | On Request | 1 | On Request | On Request | 2020+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connectivity | |
| Core Processor | |
| Core Size | |
| Data Converters | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

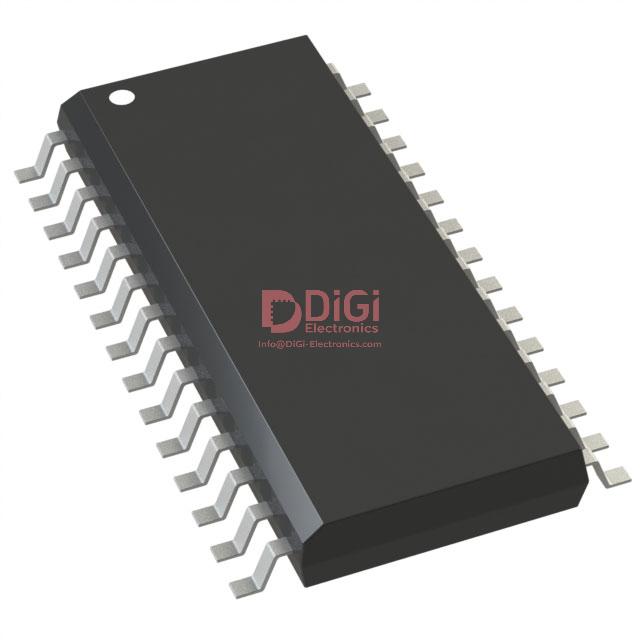

The Microchip Technology PIC14000-20/SO is a versatile 8-bit microcontroller from the PIC® 14 series. It offers a high-performance RISC CPU with 35 single-cycle instructions and operates at speeds up to 20MHz.
This microcontroller is equipped with 7KB of OTP program memory and 192 x 8 bytes of SRAM. It includes essential peripherals such as a Power-on Reset (POR), Watchdog Timer (WDT), and an on-chip temperature sensor. The device also features a Slope Analog-to-Digital (A/D) converter with multiple input channels.
Designed for embedded applications, the PIC14000-20/SO operates within a wide voltage range of 2.7V to 6.0V and has an industrial temperature range. It is housed in a compact 28-SOIC surface-mount package, making it suitable for various electronic designs requiring efficient processing and mixed-signal capabilities.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7V to 6V.
The PIC14000-20/SO is available in a 28-SOIC package.
The operating temperature range is 0°C to 70°C (TA).
The RoHS status is RoHS3 Compliant.
It has a program memory size of 7KB (4K x 14) and is of OTP type.
Included peripherals are POR, Temp Sensor, and WDT.
