| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Processor | |
| Core Size | |
| Lead Spacing | |
| Mounting Type | |
| Number of I | |
| Operating Temperature | |
| Oscillator Type | |
| Peripherals | |
| Program Memory Size | |
| Program Memory Type | |
| RAM Size | |
| Speed | |
| Supplier Device Package | |
| Voltage |

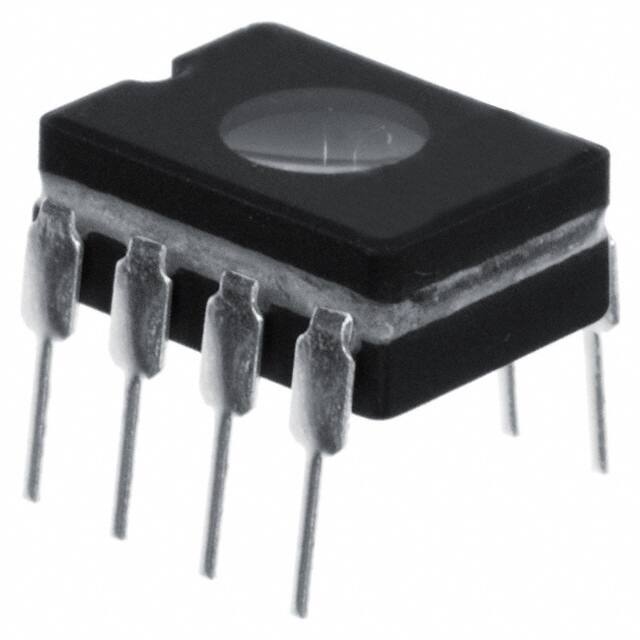

The PIC12C508A/JW is an 8-bit microcontroller from Microchip Technology, designed for embedded applications. It features a core processor based on the PIC architecture, running at speeds up to 4MHz. The device offers 768 bytes of EPROM/UV program memory and 25 bytes of RAM, suitable for small to medium-sized control tasks.
This microcontroller operates within a voltage range of 3V to 5.5V and includes peripherals such as Power-On Reset (POR) and Watchdog Timer (WDT). It has 5 I/O pins and an internal oscillator type. The PIC12C508A/JW is packaged in an 8-pin DIP (Dual In-line Package) with a window, designed for through-hole mounting.
Its operating temperature range is from 0°C to 70°C (TA). The EPROM/UV program memory type allows for reprogramming via ultraviolet light, making it useful for prototyping and specific production runs. This component is suitable for various embedded control applications where a compact and reliable 8-bit MCU is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.40 | $6.40 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The program memory type is EPROM, UV with a size of 768B (512 x 12).
The operating voltage range is 3V to 5.5V.
The operating temperature range is 0°C to 70°C (TA).
It is mounted using the through-hole method.
The included peripherals are POR and WDT.
