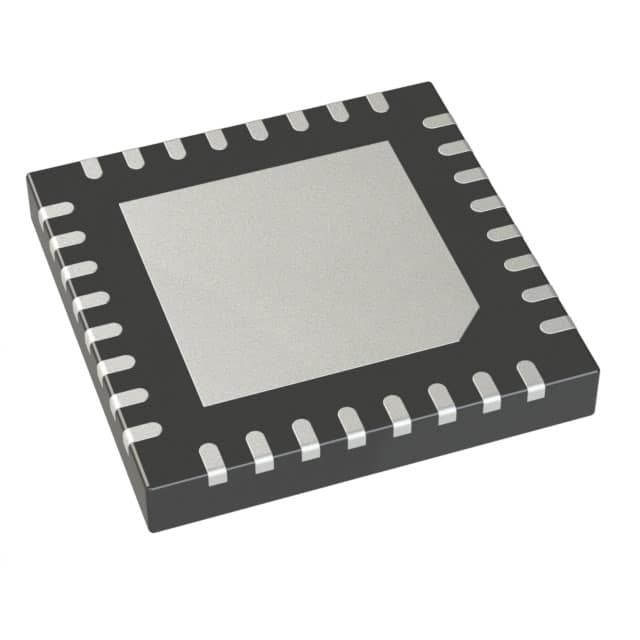

PI7C9X762CZHEX The Diodes Incorporated PI7C9X762CZHEX is a dual-channel UART bridge controller supporting I2C-bus or SPI interfaces. It features 64-byte FIFOs and operates at speeds up to 33 Mbit/s.
Mfr Part #:

PI7C9X762CZHEX

Available from 2 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated PI7C9X762CZHEX is a dual-channel UART bridge controller supporting I2C-bus or SPI interfaces. It features 64-byte FIFOs and operates at speeds up to 33 Mbit/s.
✓ Total Stock: 2 pcs
$ Price Range: $3.65

PI7C9X762CZHEX Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI7C9X762CZHEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Function
Halogen Free
Interface
Operating Temperature
Protocol
Supplier Device Package
Supplier Package
Voltage
View Similar Products (0)

PI7C9X762CZHEX Description

Short technical summary and product information.

The Diodes Incorporated PI7C9X762CZHEX is a high-performance I2C-bus/SPI to dual-channel UART bridge controller. It offers data rates up to 33Mbps and guarantees low operating and sleeping current. The device supports programmable character formatting, including 5-bit to 8-bit characters, even/odd/no parity, and 1, 1.5, or 2 stop bits. It also includes programmable receive and transmit FIFO trigger levels.



This bridge controller supports hardware flow control using RTS/CTS and software flow control with programmable Xon/Xoff characters. Interface control features include automatic RS-485 slave address detection and RS-485 driver direction control via the RTS signal. It also has a built-in IrDA encoder and decoder interface, supporting IrDA SIR speeds up to 1.152Mbps.



The PI7C9X762CZHEX operates across a wide voltage range of 1.8V, 2.5V, or 3.3V and is designed for industrial temperature ranges from -40°C to 85°C. It is available in a 32-VFQFN exposed pad package, making it suitable for cost-efficient, handheld, and battery-operated applications. The device is fully RoHS compliant and Halogen and Antimony Free.



Applications include industrial computing, automation, factory process control, mobile computing, embedded applications, battery-operated devices, and networking. The controller is compatible with industrial standard 16C450 and equivalent.

PI7C9X762CZHEX Quick Information

Product Type: I2C-Bus/SPI to UART Bridge Controller
Canonical Name: PI7C9X762CZHEX I2C-Bus/SPI to UART Bridge Controller
Subcategory: I2C/SPI to UART

PI7C9X762CZHEX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead-free

PI7C9X762CZHEX Estimated Pricing

Qty Low High
1+ $3.65 $3.65

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI7C9X762CZHEX Features

  • Dual channel full-duplex UART support.
  • I2C-bus or SPI interface compatibility.
  • 64 bytes FIFO for transmitter and receiver.
  • Baud rates up to 16Mbit/s (UART).
  • Wide operation voltage from 1.8V to 3.3V.

PI7C9X762CZHEX Applications

  • Ideal for industrial computing applications.
  • Suitable for factory automation systems.
  • Used in mobile computing devices.
  • Designed for embedded applications.
  • Applicable for battery-operated devices.

PI7C9X762CZHEX FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the PI7C9X762CZHEX?

The operating temperature range is -40°C to 85°C.

What are the supported operating voltages for this UART bridge controller?

The PI7C9X762CZHEX supports operating voltages of 1.8V, 2.5V, and 3.3V.

What package type is the PI7C9X762CZHEX available in?

The device is available in a 32-VFQFN exposed pad package.

Is the PI7C9X762CZHEX RoHS compliant?

Yes, the PI7C9X762CZHEX is RoHS3 Compliant.

What is the FIFO size for the PI7C9X762CZHEX?

The PI7C9X762CZHEX features 64-byte FIFOs for both transmitter and receiver.

What is the maximum SPI clock speed supported by the PI7C9X762CZHEX?

The PI7C9X762CZHEX supports a maximum SPI clock speed of 33 Mbit/s.
