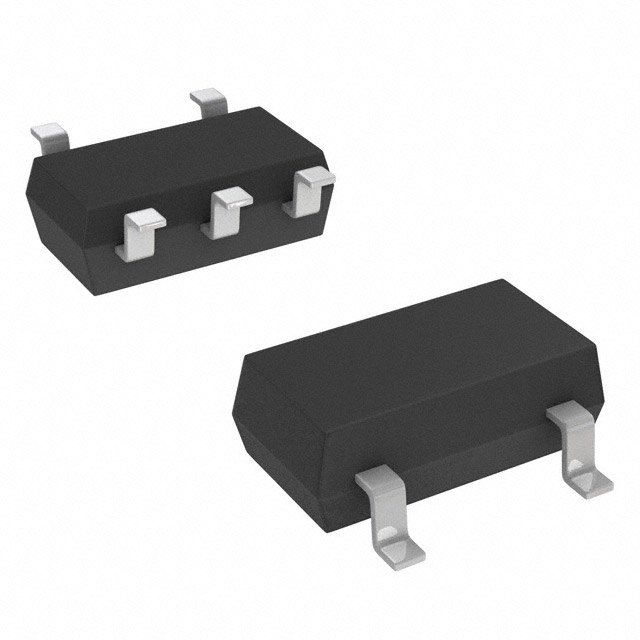

PI74STX1G08CEX The PI74STX1G08CEX is a 2-input AND gate from Diodes Incorporated. It operates over a broad voltage range and features high-speed performance.
Mfr Part #:

PI74STX1G08CEX

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The PI74STX1G08CEX is a 2-input AND gate from Diodes Incorporated. It operates over a broad voltage range and features high-speed performance.
✓ Total Stock: 106,200 pcs
$ Price Range: $0.22

PI74STX1G08CEX Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
106,200 pcs
On Request
106200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PI74STX1G08CEX Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Lead Style
Logic Type
Max Propagation Delay @ V, Max CL
Mounting Type
Number of Circuits
Number of Inputs
Operating Temperature
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

PI74STX1G08CEX Description

Short technical summary and product information.

The PI74STX1G08CEX is a single 2-input AND gate IC from Diodes Incorporated, designed for versatile applications. It operates across a wide supply voltage range from 1.65V to 5.5V, making it suitable for various system designs. This gate offers high-speed operation with a typical propagation delay of 2.4ns at 5V and 50pF load capacitance. The device features high output drive capability, delivering ±24mA at 3V VCC. It is available in a compact SC-70-5 package, ideal for space-constrained applications. The PI74STX1G08CEX is designed for reliable performance within an operating temperature range of -40°C to 85°C.

PI74STX1G08CEX Quick Information

Product Type: AND Gate
Series: STX
Canonical Name: PI74STX1G08CEX 2-Input AND Gate
Subcategory: AND Gate

PI74STX1G08CEX Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PI74STX1G08CEX Estimated Pricing

Qty Low High
1+ $0.22 $0.22

Estimated market price range - modelled values for guidance only, not live distributor offers.

PI74STX1G08CEX Features

  • 2-input AND gate logic.
  • Wide 1.65V to 5.5V operating voltage.
  • Fast 2.4ns typical propagation delay.
  • High output drive capability.
  • Compact SC-70-5 package.

PI74STX1G08CEX Applications

  • Ideal for high-speed signal gating in portable devices.
  • Used in low-voltage logic for minimal propagation delay.
  • Suitable for battery-powered electronics up to 5.5V.
  • Ideal for compact surface-mount logic designs.

PI74STX1G08CEX FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the PI74STX1G08CEX?

1.65V to 5.5V.

What is the operating temperature range?

-40°C to 85°C.

What package does the PI74STX1G08CEX come in?

SC-70-5 (also 5-TSSOP, SOT-353).

How many inputs does this AND gate have?

2 inputs.

What is the typical propagation delay?

2.4ns at 5V, 50pF load.
