| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Halogen Free | |
| Input | |
| Input Type | |
| Lead Spacing | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Type | |
| Voltage |

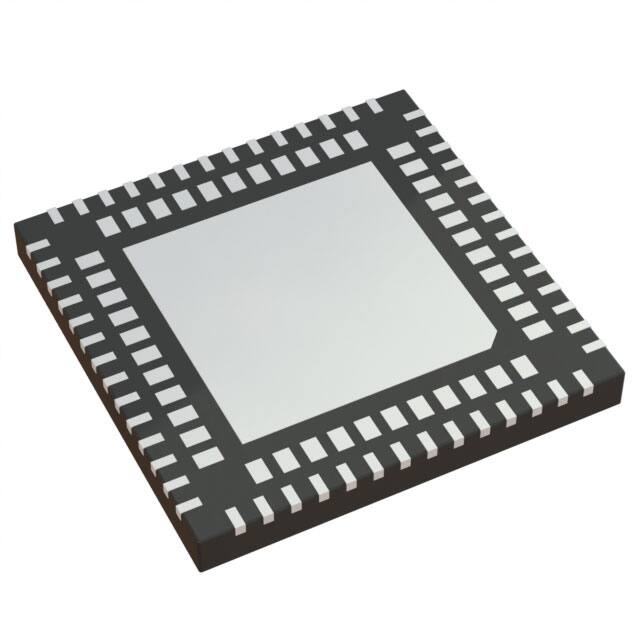

The Diodes Incorporated PI6CG330440ZUDIEX is a high-performance, 19-output clock generator featuring on-chip termination for simplified layout and reduced component count. It supports Intel's CK440Q specification and operates from a 3.3V supply voltage.
This device generates 25MHz and 100MHz outputs, with 7 dedicated 100MHz outputs, 3 dedicated 25MHz outputs, and 9 selectable outputs capable of driving either frequency. It boasts 85Ω differential drivers and achieves PCIe 6.0 Common Clock RMS jitter of less than 22fs, meeting PCIe 1.0 through 6.0 clock requirements.
Key features include programmable SSC on the 100 MHz output, SMBus programmability with multiple addresses, and PCIe compatible OE# control on 7 pins. The device is available in a 100-Contact, 8x8 mm UQFN package, suitable for surface mounting.
It is designed for applications requiring precise clock generation and low jitter, such as high-speed computing and networking systems. The PI6CG330440ZUDIEX is also lead-free and fully RoHS compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage is 3.3V.
The operating temperature range is -40°C to 85°C (TA).
It is available in a 100-UQFN (8x8) package for surface mounting.
Yes, it is RoHS3 Compliant.
