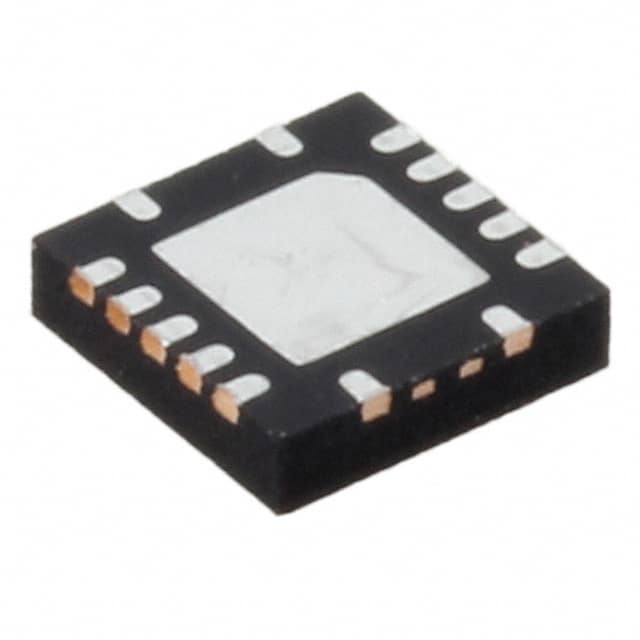

The PI4ULS5V104ZBEX from Diodes Incorporated is a versatile 4-bit, bidirectional level shifter designed for seamless voltage translation between different logic levels. It features automatic direction sensing, simplifying circuit design by eliminating the need for direction control pins.
This device supports a VCCA supply voltage range of 1.2V to 3.6V and a VCCB supply voltage range of 1.65V to 5.5V, enabling translation between a wide array of common voltage domains. With a data rate of up to 100Mbps, it is suitable for high-speed digital interfaces. The outputs are Tri-State and non-inverted, providing flexibility in system integration.
Packaged in a compact 14-QFN (3.5x3.5mm) with an exposed pad, the PI4ULS5V104ZBEX is designed for surface mounting. It operates within an ambient temperature range of -40°C to 85°C. The device includes one circuit with four bidirectional channels, offering efficient translation capabilities for multiple signal lines.
Key specifications include a nominal data rate of 100Mbps, a VCCA range of 1.2V to 3.6V, and a VCCB range of 1.65V to 5.5V. The output type is Tri-State, Non-Inverted. The operating temperature is specified from -40°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The VCCA supply voltage range is 1.2 V to 3.6 V.
The VCCB supply voltage range is 1.65 V to 5.5 V.
The operating temperature range is -40°C to 85°C.
This translator supports a data rate of 100Mbps.
There are 4 channels per circuit.
This device is a Voltage Level translator.
The output type is Tri-State, Non-Inverted.
