| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,505 pcs
|
1505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Channel Type | |
| Channels per Circuit | |
| Data Rate | |
| Features | |
| Halogen Free | |
| Mounting Type | |
| Number of Channels | |
| Number of Circuits | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay | |
| Supplier Device Package | |
| Translator Type | |
| Voltage |
The PI4ULS3V204ZBEX from Diodes Incorporated is a 4-bit configurable, dual-supply, bidirectional auto-sensing translator. It operates across a wide supply voltage range of 1.1V to 3.6V on both the A and B ports, allowing for flexible logic level translation between different voltage domains.
This device supports high-speed data rates, reaching up to 24 Mb/s for push-pull applications and 2 Mb/s for open-drain applications. It features integrated 10 kΩ pull-up resistors on the I/O lines, simplifying designs for open-drain interfaces like I2C. The auto-direction sensing eliminates the need for a directional control signal, streamlining system integration.

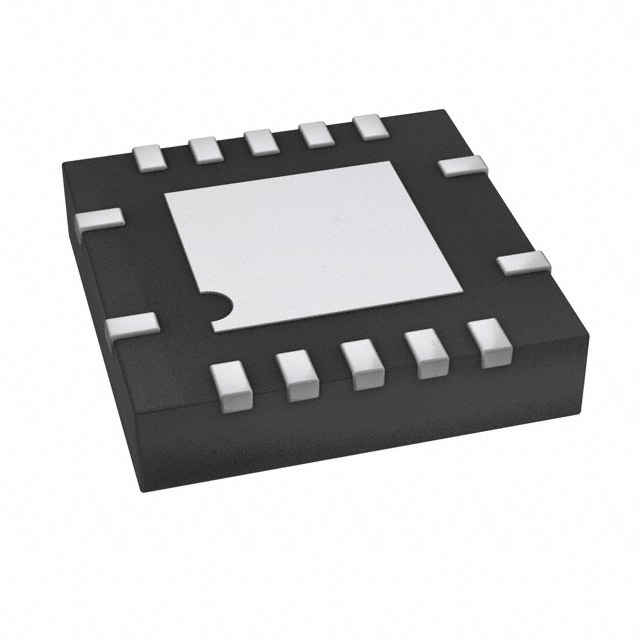

Packaged in a 14-TQFN (3.5x3.5 mm) with an exposed pad, the PI4ULS3V204ZBEX is designed for surface mounting. It operates within an industrial temperature range of -40°C to 85°C. This translator is suitable for applications requiring low voltage ASIC level translation, mobile phones, PDAs, and camera interfaces.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
1.1V to 3.6V.
-40°C to 85°C.
14-VFDFN Exposed Pad and 14-TQFN (3.5x3.5).
4 channels.
2 Mbps (open-drain) and 24 Mbps (push-pull).
Yes, integrated 10 kΩ pull-up resistors.
260 ns.
