The PI4ULS3V204GAEX from Diodes Incorporated is a 4-bit configurable, dual-supply, bidirectional auto-sensing translator. It supports a wide supply voltage range from 1.1V to 3.6V on both A and B ports, allowing for flexible logic level translation between different voltage domains.
This device features high-speed data rates, reaching up to 24 Mb/s for push-pull applications and 2 Mb/s for open-drain applications. It includes integrated 10 kΩ pull-up resistors on the I/O lines, simplifying design and reducing component count. The translator does not require a direction-control signal, making it ideal for applications like I2C, SMBus, and MDIO.

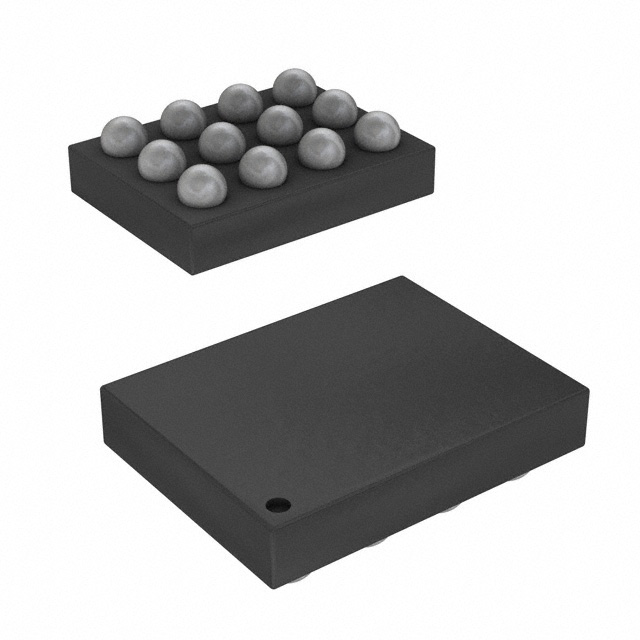

Designed for surface mounting, the PI4ULS3V204GAEX comes in a compact 12-CSP (1.37x1.87) package. It operates within an ambient temperature range of -40°C to 85°C. The device offers ESD protection exceeding 8000V HBM per JESD22-A114.
Key features include auto-direction sensing, bidirectional channel type, and support for both open-drain and push-pull output types. This makes it a versatile solution for low-voltage ASIC level translation and mobile device applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.12 | $0.12 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.1V to 3.6V.
The operating temperature range is -40°C to 85°C.
The device is available in 12-UFBGA and CSPBGA packages (12-CSP, 1.37x1.87mm).
It supports up to 24Mbps in push-pull mode and up to 2Mbps in open-drain mode.
It is a voltage level translator with auto-direction sensing.
The device supports open-drain and push-pull output types.
Yes, it has integrated 10kΩ pull-up resistors.
